Mã SP: ST.BE.A0012
Giá: Liên hệ
• Basic characteristics, parameters of operational amplifiers

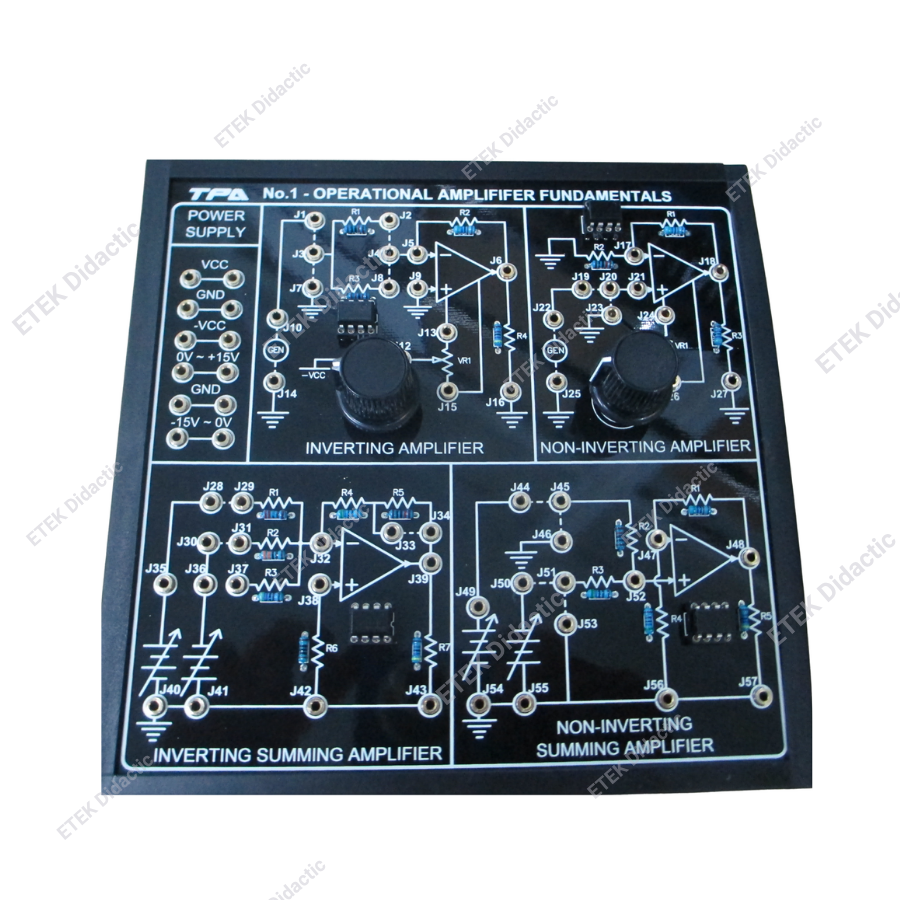

• Learn the principles and practice of inverting, non-inverting, and inverting amplifier circuits

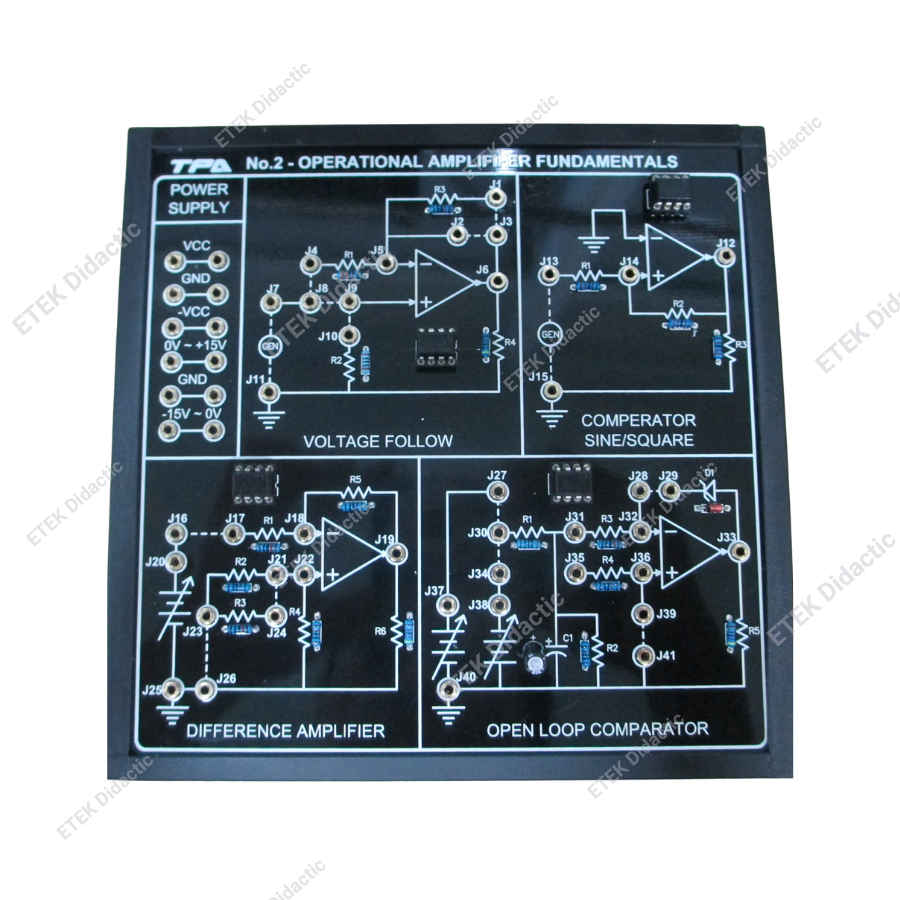

• Learn the principles and practice with voltage repeater circuits, sine wave to square wave

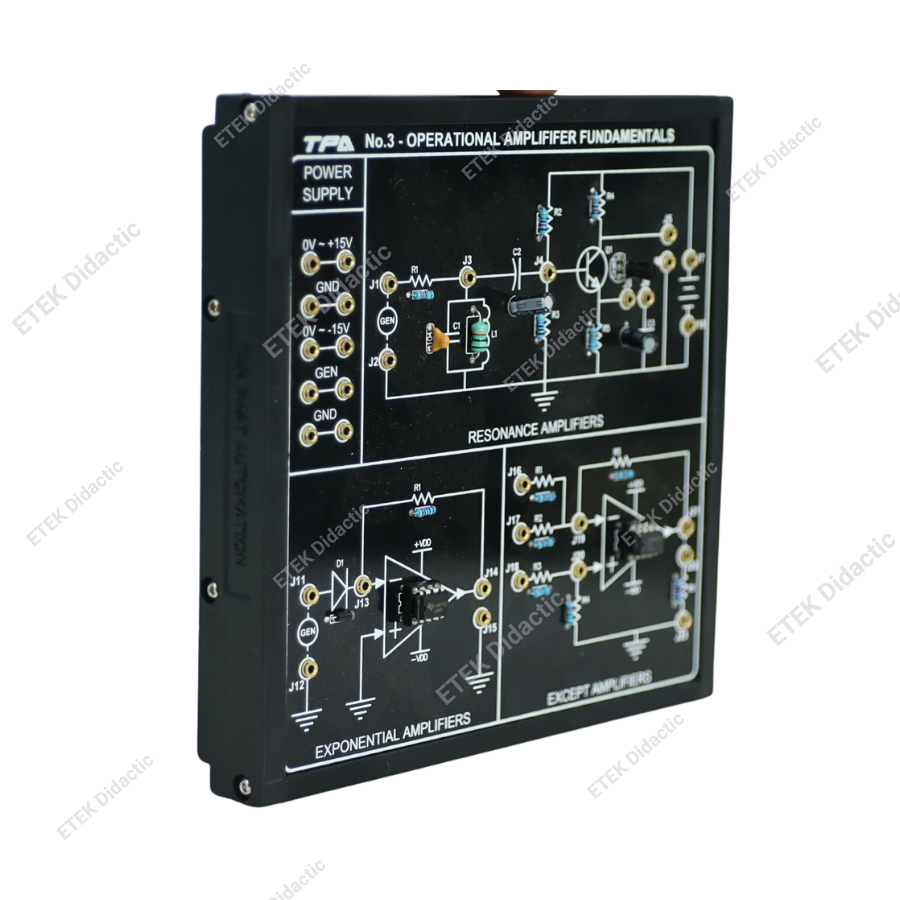

• Learn the principles and practice with differential amplifiers, open loop circuits, resonators
• Learn the principles and practice with exponential and subtractive amplifier circuits
• The practice set helps students improve their theoretical
knowledge of power source circuits
• Theory of inverting/non-inverting amplifier circuits, buffer circuits
• Add/subtract circuit, differential amplifier circuit, comparator circuit…

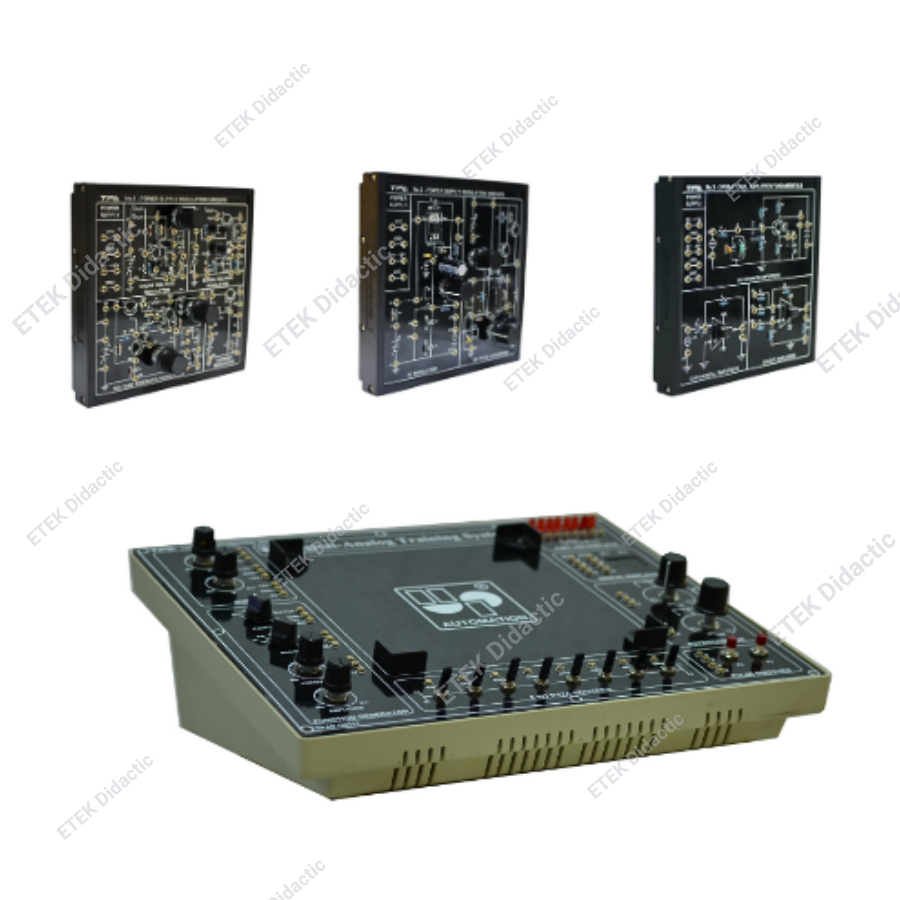

• The circuit board has built-in components and intuitive, easy-to-understand circuit diagrams
• Verify the theories you have learned
• Calculate and design basic electronic circuits
• Understand the uses and application scope of each circuit
• Know how to measure, detect errors and fix circuit errors
• Box size: 173x169x25mm (LxWxH)
• Quality Management Standard ISO 9001:2015
• Designed as separate modules with the same connection
standard
• Black aluminum box style, molded plastic lid
• The printing pattern guides the printing of the film on the
module surface, ensuring aesthetics, longevity of the
device
• Box size: 173x169x25mm (LxWxH)
• Power supply: 0 ~ ±15VDC
• Thysistor 20A/800V
• Triac 8A/600V
• Adjustable rheostat: 0 ~ 10KΩ
• Black anodized aluminum case
• Practice circuits divided into clear blocks
• M2 signal jack
• Box size: 173x169x25mm (LxWxH)
• Power supply: 0 ~ +15VDC
• Thysistor 20A/800V
• 3-pin UJT TO-18
• Adjustable rheostat: 0 ~ 10KΩ
• Black anodized aluminum case
• Practice circuits divided into clear blocks
• M2 signal jack
• Box size: 173x169x25mm (LxWxH)
• Power supply: 0 ~ +15VDC
• Thysistor 20A/800V
• 3-pin UJT TO-18
• Adjustable rheostat: 0 ~ 10KΩ
• Black anodized aluminum case
• Practice circuits divided into clear blocks
• M2 signal jack
