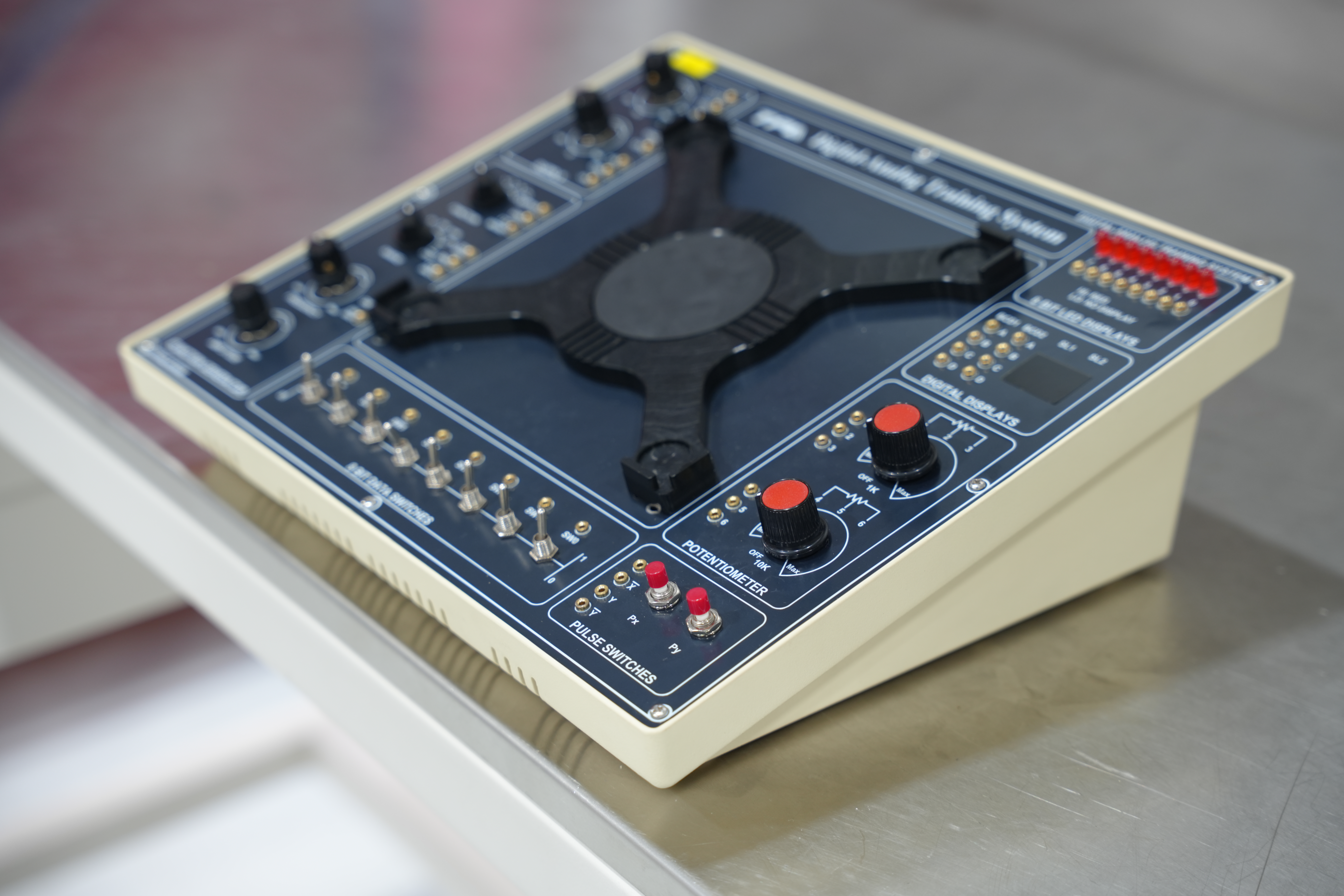

DIGITAL PRACTICE SET

DIGITAL PRACTICE SET

Mã SP: ST.BE.B0100

Giá: Liên hệ

A Digital Practice Set is an educational kit or tool designed to help individuals learn and practice digital electronics concepts through hands-on experiments. These sets typically include various components required to build and test digital circuits, providing a

  • Thông tin thiết bị
  • Thông số kĩ thuật

TRAINING CONTENT

• Learn circuit principles and practice with MULTIPLEXER multiplexing and DEMULTIPLEXER multiplexing circuits

• Learn the principles and practice with BCD/DECIMAL, BCD PRIORITY circuits

• Learn the principles and practice with ADC/DAC conversion circuits

• Learn the principles and practice with the 7-SEGMENT DRIVER/DISPLAY circuit

• Learn the principles and practice with the ASYNCHRONOUS RIPPLE COUNTER circuit

HIGHLIGHTS FEATURES

• The practice set helps students improve their knowledge

• Logic gates, flip-flops, TTL/ CMOS

• Encode/decode, ADC/DAC, counter, bit shift, multiplexing/ demultiplexing, ROM/RAM/SRAM/EEPROM memory

• The circuit board has built-in components and intuitive, easy-to-understand circuit diagrams

SKILLS ACHIEVED

• Verify the theories you have learned

• Calculate and design basic electronic circuits

• Understand the uses and application scope of each circuit

• Know how to measure, detect errors and fix circuit errors

• Box size: 173x169x25mm (LxWxH)

• Quality Management Standard ISO 9001:2015

• Designed as separate modules with the same connection standard

• Black aluminum box style, molded plastic lid

• The printing pattern guides the printing of the film on the module surface, ensuring aesthetics, longevity of the device

LOGIC CIRCUIT BASICS TEST MODULE – TPAQ.E0300

• Box size: 173x169x25mm (LxWxH)

• Power supply: +5VDC

• Pulse level input pin

• Led display output

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

LOGIC CIRCUIT BASICS TEST MODULE – TPAQ.E0400

• Box size: 173x169x25mm (LxWxH)

• Power supply: +5VDC

• Pulse level input pin

• Led display output

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

LOGIC CIRCUIT BASICS TEST MODULE – TPAQ.E0500

• Box size: 173x169x25mm (LxWxH)

• Power supply: +5VDC, 0-15V

• Pulse level input pin

• Led display output

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

CIRCUIT BASIC TEST MODULE NO. 1 – CIRCUIT – TPAQ.E1400

• Box size: 173x169x25mm (LxWxH)

• Power supply: +5VDC • Pulse level input pin

• Led display output

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

CIRCUIT BASIC TEST MODULE NO. 1 – CIRCUIT – TPAQ.E1500

• Box size: 173x169x25mm (LxWxH)

• Power supply: +5VDC, 0-15V

• Pulse level input pin

• Led display output

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

BASIC TEST MODULE ON DIGITAL CIRCUITS – TPAQ.E1600

• Box size: 173x169x25mm (LxWxH)

• Power supply: +5VDC

• Pulse level input pin

• Led display output

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

 BASIC TECHNICAL LABORATORY MODULE – TPAQ.E2000

• Box size: 173x169x25mm (LxWxH)
• Power supply: +5VDC • +5VDC data latch IC
• Johnson counter IC with +5VDC decoding output
• The counter IC presets the count
• Black anodized aluminum case
• Practice circuits divided into clear blocks
• M2 signal jack

DIGITAL FUNDAMENTALS EXPERIMENT MODULE – TPAQ.E2100

• Box size: 173x169x25mm (LxWxH)

• Power supply: +5VDC

• Synchronous counter IC with +5VDC power supply

• IC decoder 8 -3 +5VDC power supply

• C decoding and demultiplexing 3-8

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

BASIC TECHNICAL LABORATORY MODULE  – TPAQ.E2200

• Box size: 173x169x25mm (LxWxH)

• Power supply: +5VDC

• 2-1 multiplexer

• Decoder 2-4

• Channel divider 2-4

• 4-bit Johnson counter

• M2 signal jack

MEMORY SKILLS TEST MODULE – TPAQ.G0100

• Box size: 173x169x25mm (LxWxH)

• Power supply: 5VDC

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

MEMORY SKILLS TEST MODULE – TPAQ.G1000

• Box size: 173x169x25mm (LxWxH)
• Power supply: 5VDC
• Black anodized aluminum case
• Practice circuits divided into clear blocks
• M2 signal jack

TEST MODULE FOR SKILLS IN EEPROM AND SRAM MEMORY – TPAQ.G2000

• Box size: 173x169x25mm (LxWxH)
• Power supply: 5VDC
• Black anodized aluminum case
• Practice circuits divided into clear blocks
• M2 signal jack
