Mã SP: ST.BE.A0003
Giá: Liên hệ

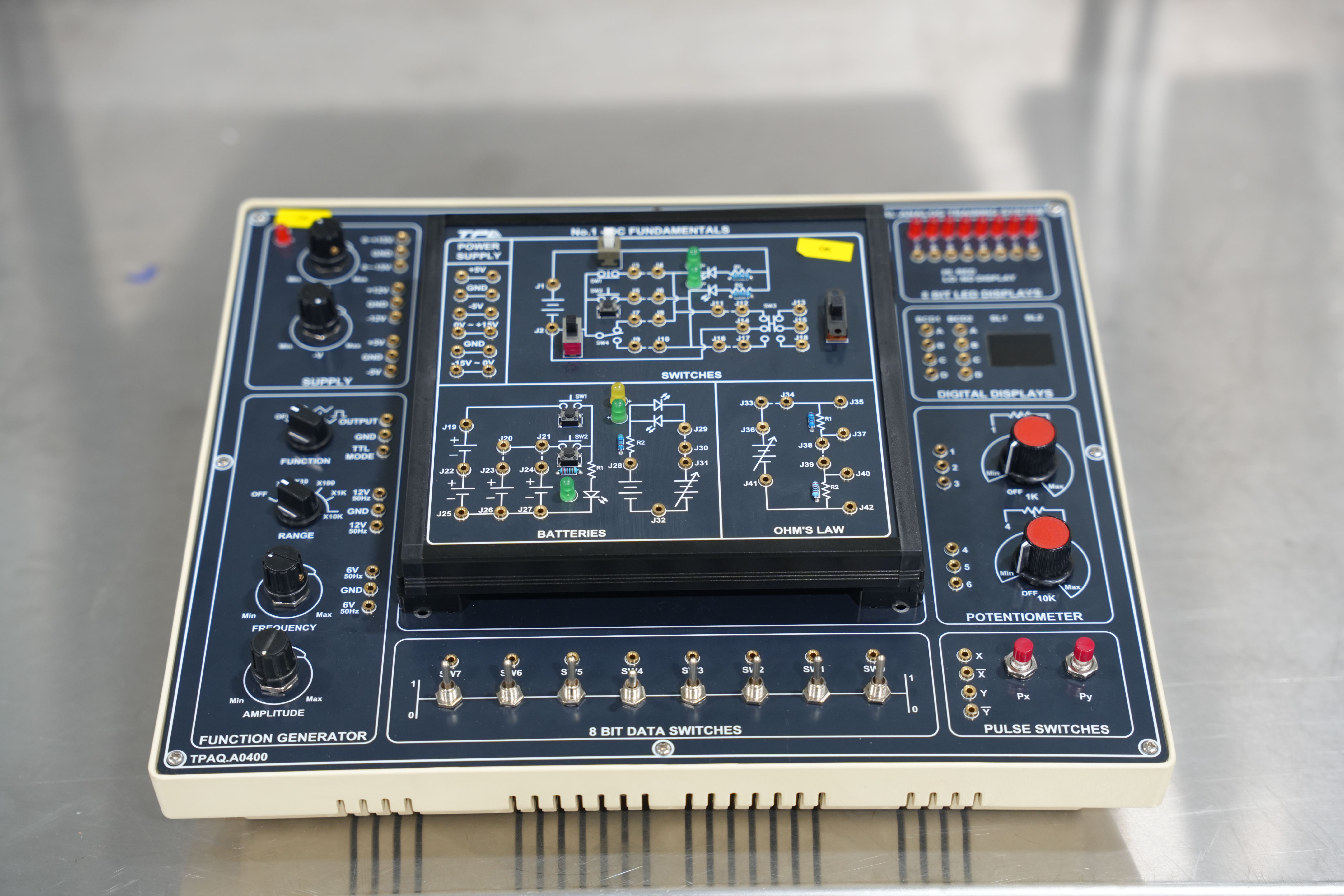

An experiment set for DC circuit theorems involves various practical setups that demonstrate key theorems used in direct current (DC) circuits.

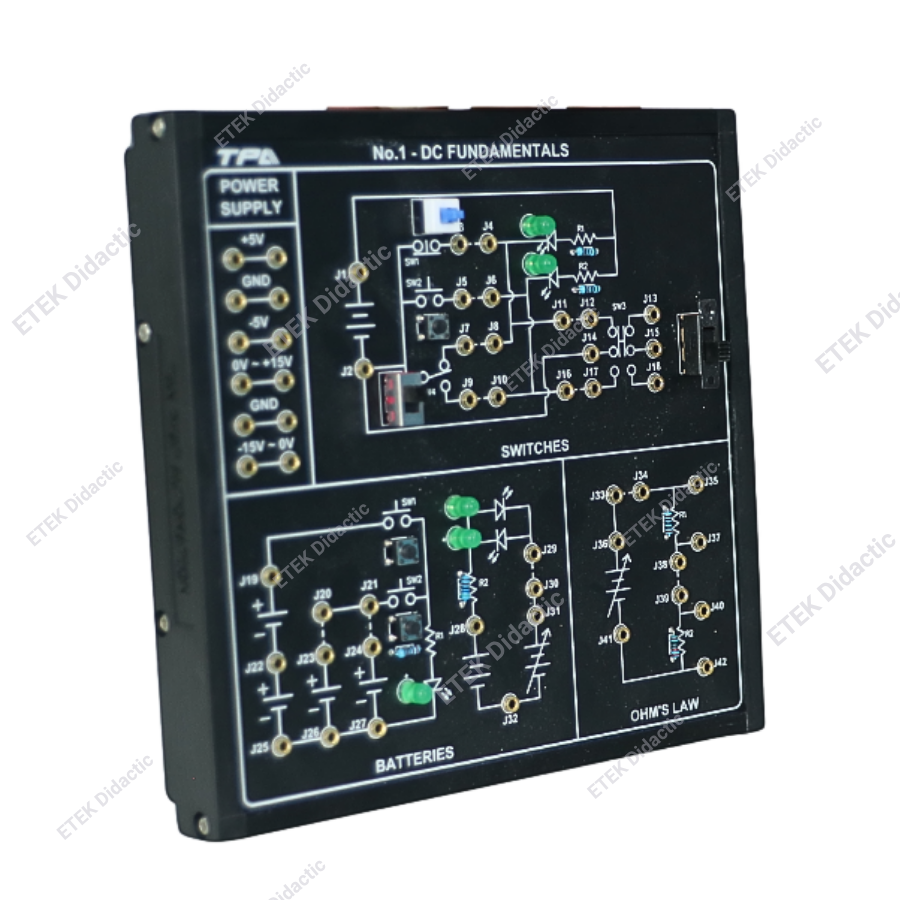

• DC power sources in series, parallel, dual
• Determine theswitching type
• Concept of circuit reversal
• Ohm’s Law: resistance, current, circuit voltage

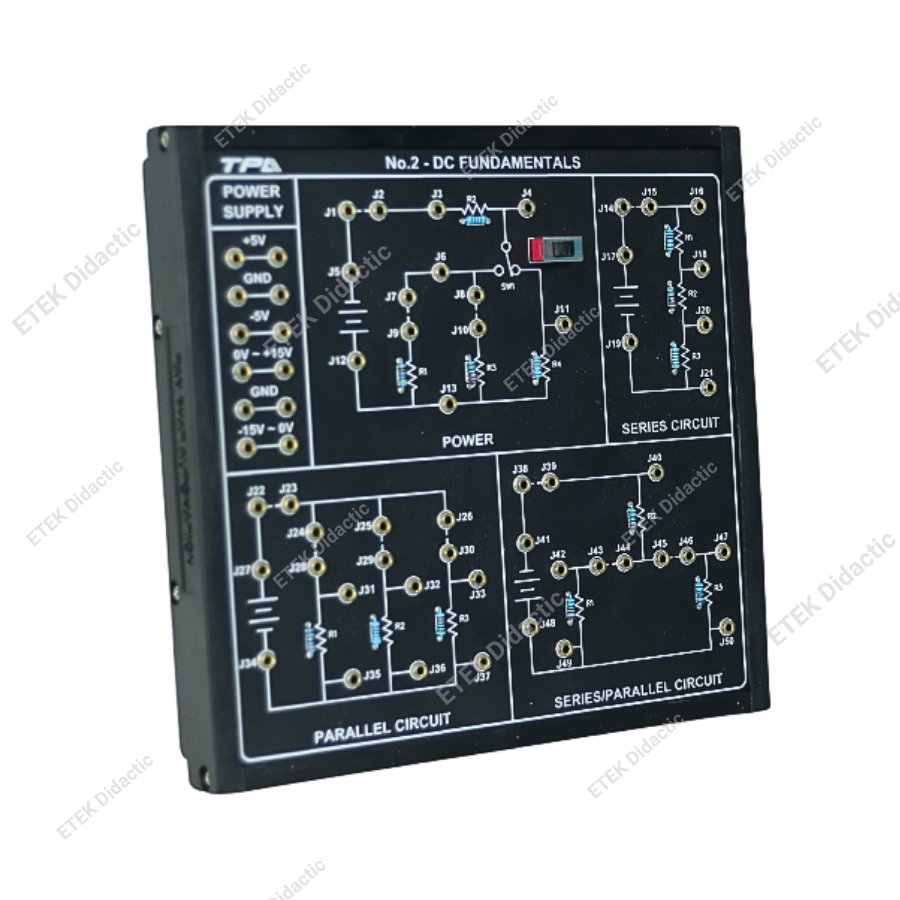

• Resistance, current, voltage in series, parallel, mixed resistor circuits
• Power in series, parallel and mixed resistor circuits
• The practice set helps students improve their knowledge
and verify the laws when learning about circuit theory

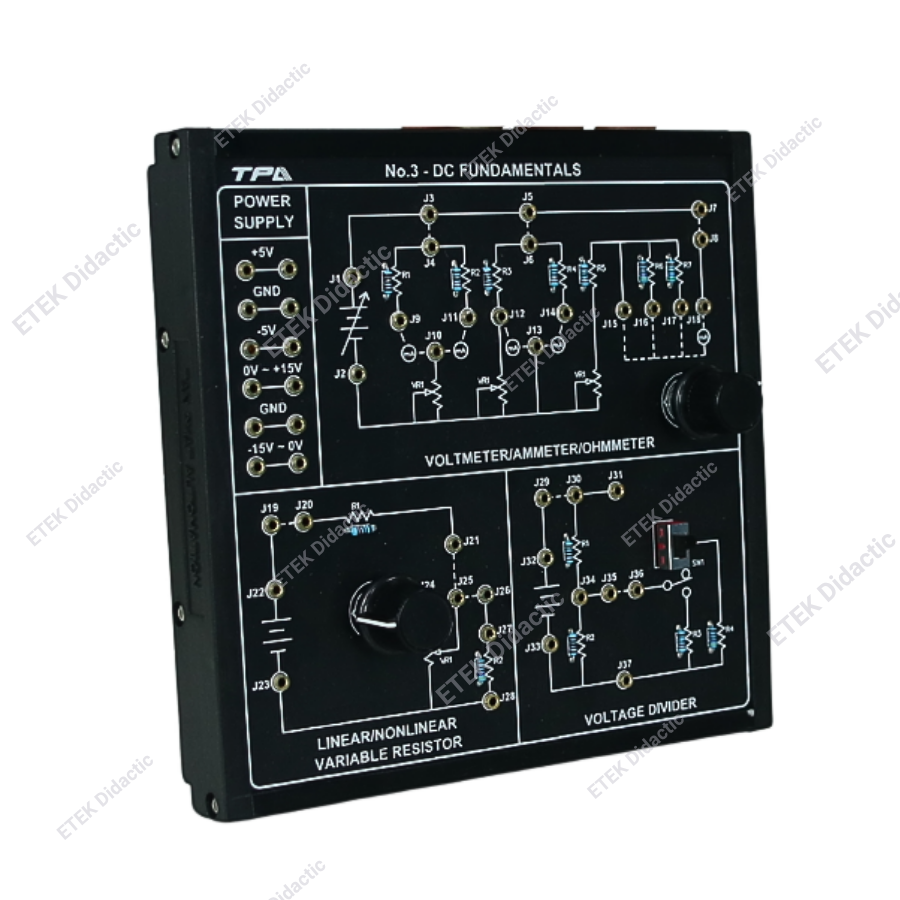

• Ohm’s law, calculate resistance in series or parallel circuits

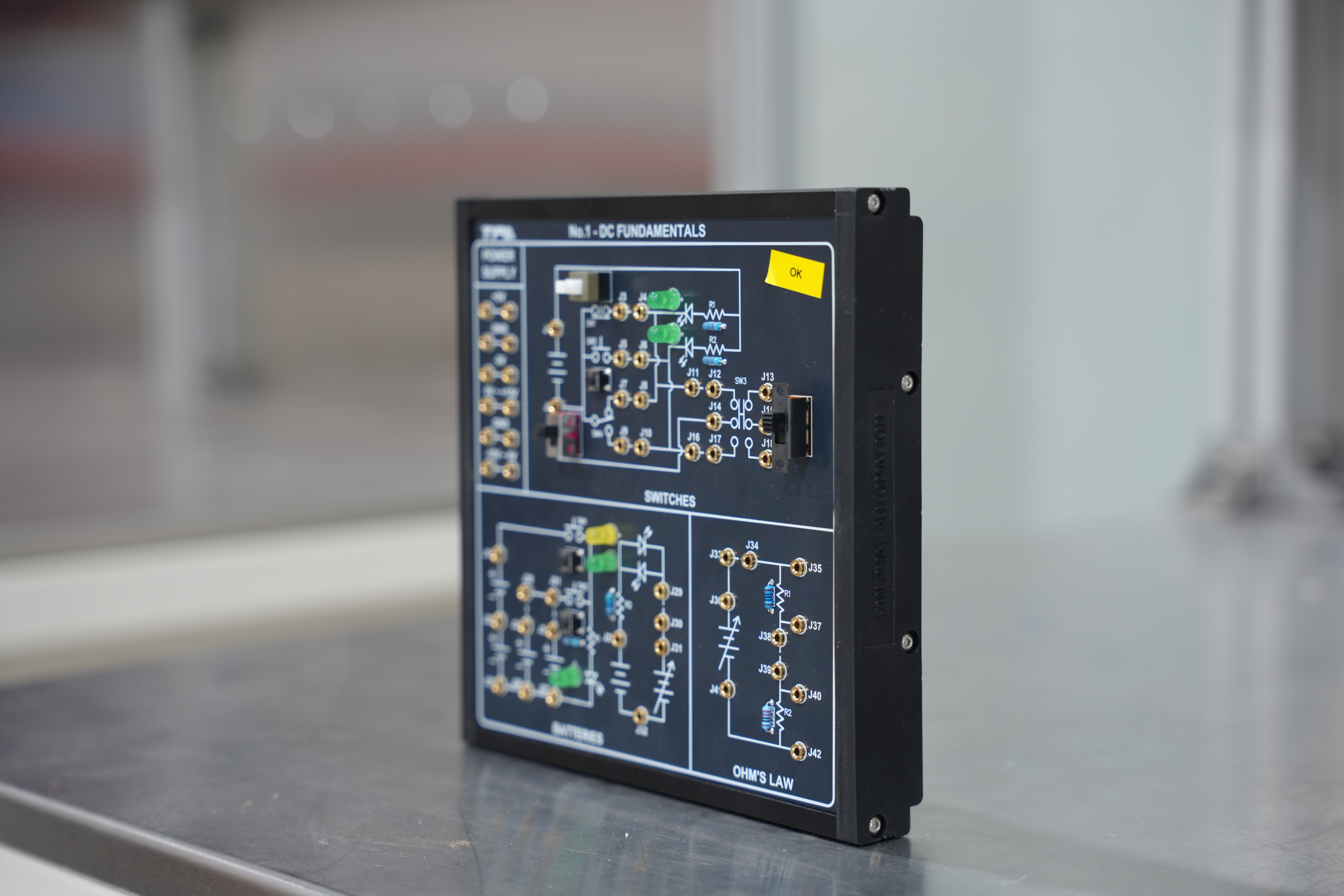

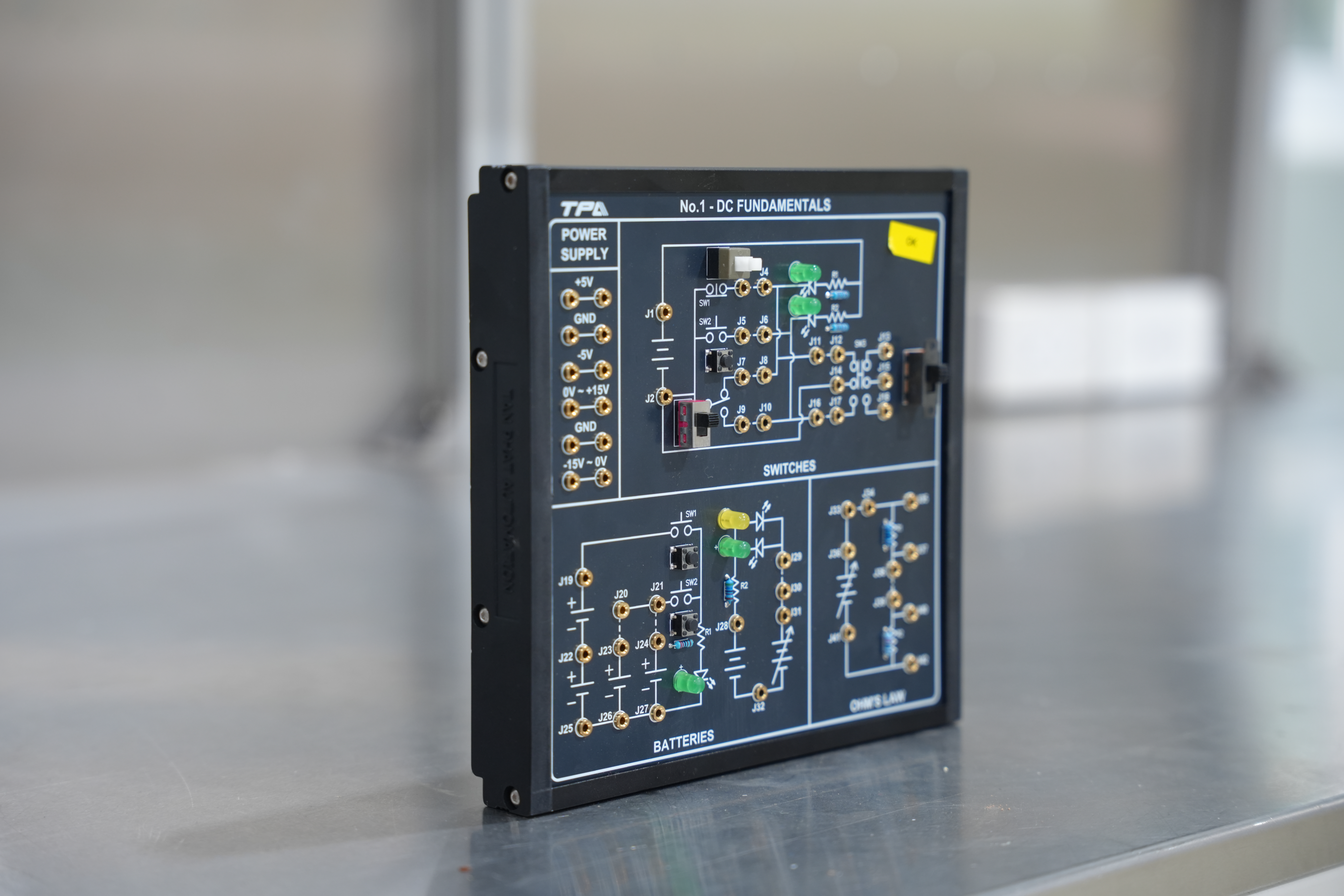

• On the circuit board are built-in components and intuitive, easy-to-understand circuit drawings
• Review learned theories
• Calculate and design basic electronic circuits
• Understand the uses and scope of application of each circuit
• Know how to measure, detect errors and repair circuit errors
• Box size: 330 x 264 x 110mm (WxDxH)
• Quality Management Standard ISO 9001:2015

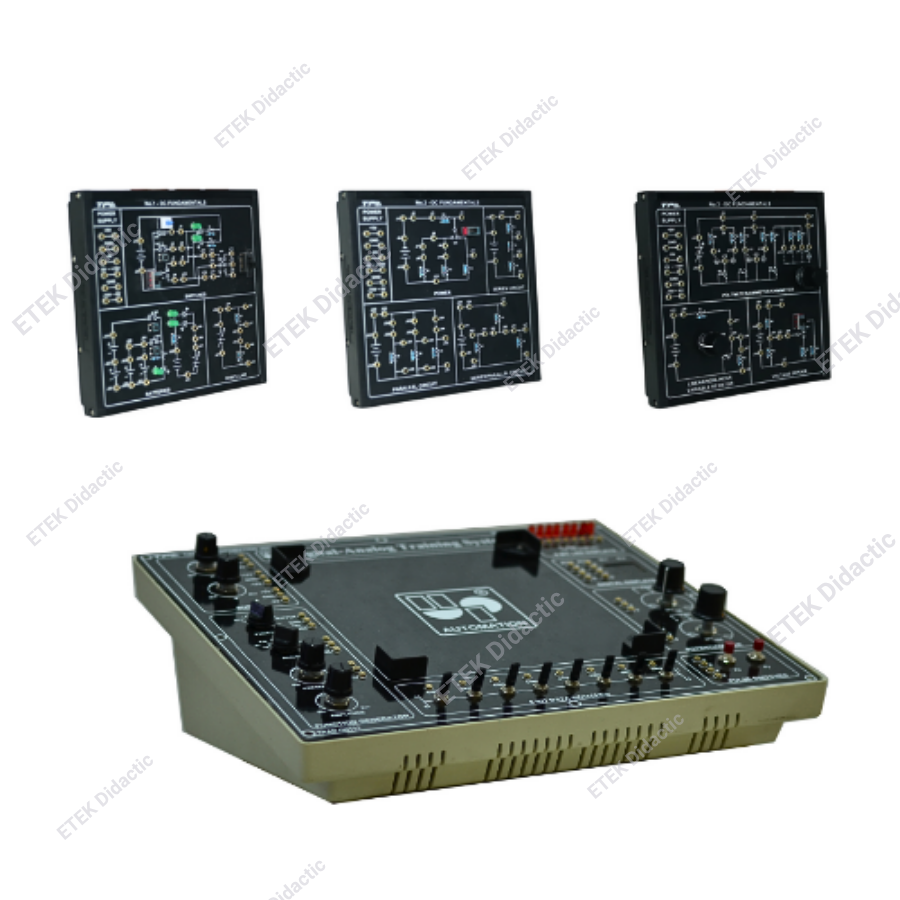

• Designed as separate modules with the same connection
standard
• Standard M2 type pin
• Black aluminum box style, molded plastic lid
• The printing pattern guides the printing of the film on the module surface, ensuring aesthetics and the longevity of the device
• Box size: 173x169x25mm (LxWxH)
• Power supply: ±5VDC, 0 ~ ±15VDC
• Black anodized aluminum case
• M2 signal jack
• Box size: 173x169x25mm (LxWxH)
• Power supply: ±5VDC, 0 ~ ±15VDC
• Black anodized aluminum case
• M2 signal jack
• Box size: 173x169x25mm (LxWxH)
• Power supply: ±5VDC, 0 ~ ±15VDC
• Black anodized aluminum case
• M2 signal jack
