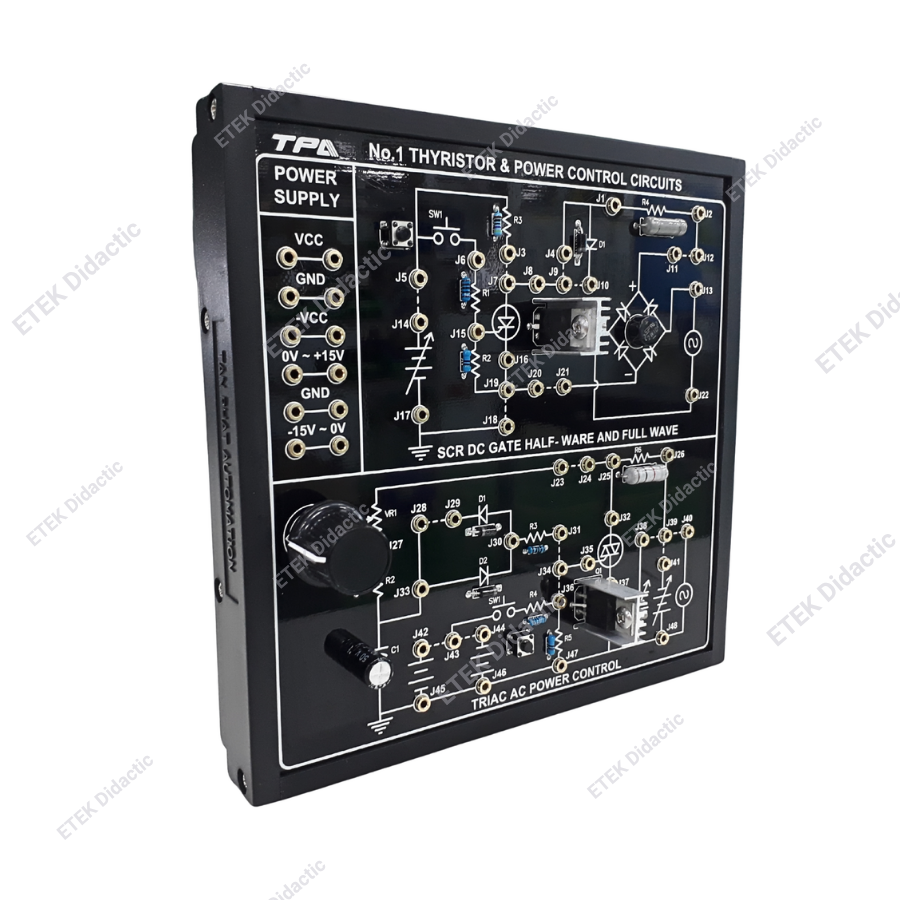

POWER CONTROL AND THYRISTOR EXPERIMENT KIT

TRAINING CONTENT

• Learn the principles and practice of half-wave DC Gate and full-wave Gate SCR circuits

• Learn the principles and practice of AC power control circuits using Triac

• Learn the principles and practice of controlled rectifier circuits

• Learn the principles and practice of half-wave and full-wave SCR AC Gate circuits

HIGHLIGHTS FEATURES

• The practice set helps students improve their theoretical knowledge of power source circuits

• Theory of DC rectifier circuit using controlled half-wave/ full-wave SCR

• SCR trigger circuit by UJT, AC voltage regulator circuitis by Triac

• The circuit board has built-in components and intuitive, easy-to-understand circuit diagrams

SKILLS ACHIEVED

• Verify the theories you have learned

• Calculate and design basic electronic circuits

• Understand the uses and application scope of each circuit

• Know how to measure, detect errors and fix circuit errors
