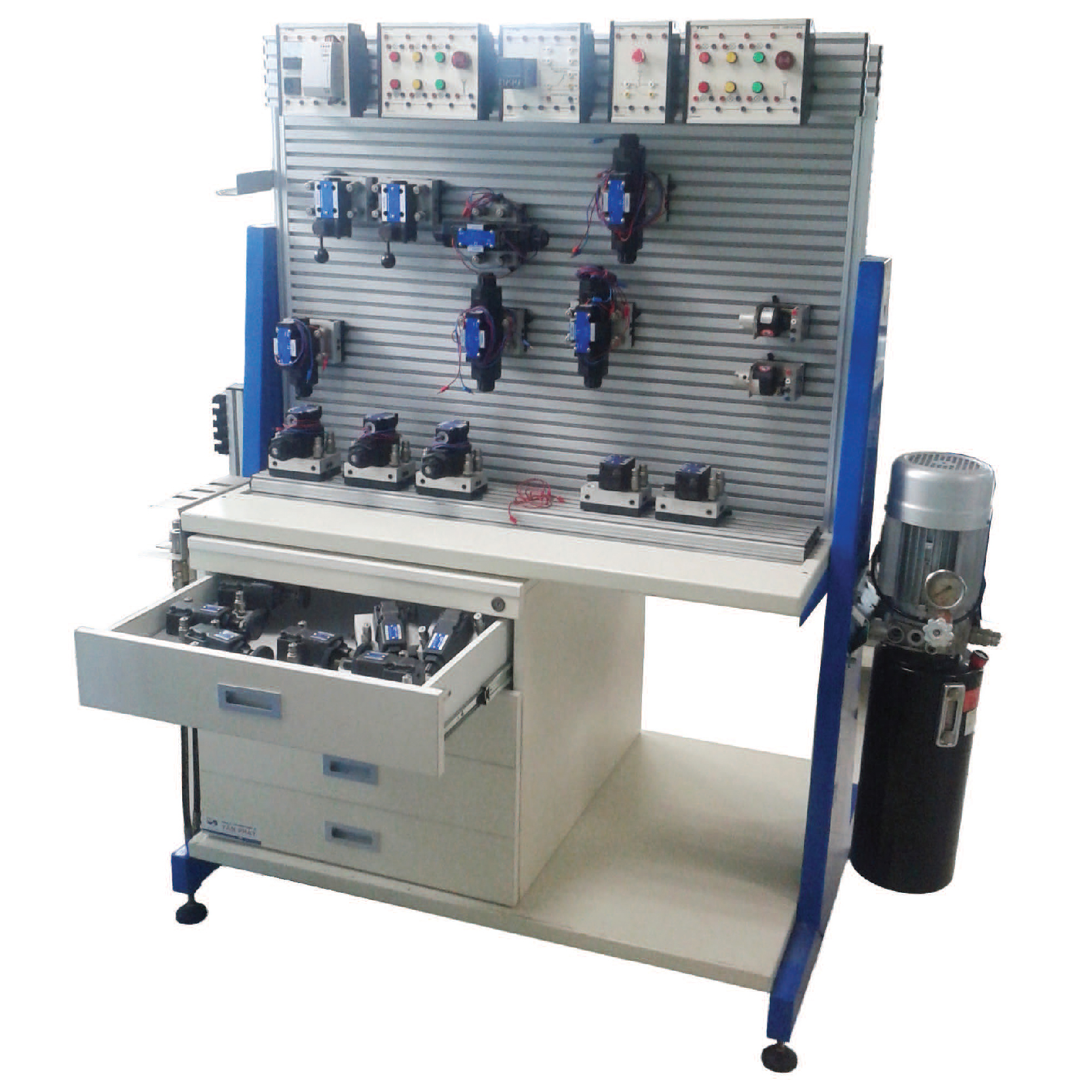

ADVANCED ELECTROHYDRAULIC PRACTICE SET

Product Code: ST.HP.T1201

Price: Contact

  • Device information
  • Specifications

I. Training content
- Physical principles of hydraulics.
- Characteristics of hydraulic pressure and flow
- Reduce pressure on hydraulic pipes
- Learn the functions and uses of hydraulic valves and other components.
- Basic hydraulic system control
- Understand and redraw existing hydraulic circuit diagrams
- Practice with flow control valves
- Practice controlling hydraulic motors
- Practice controlling hydraulic cylinders
- Practice designing applied hydraulic circuits
- Assembling and operating control circuits:
     + Lesson 1: Van Shut-off
     + Lesson 2: Clamp set
     + Lesson 3: Milling machine
     + Lesson 4: Pressing machine
     + Lesson 5: Bending machine
     + Lesson 6: Broaching machine
     + Lesson 7: The drying oven operates continuously
     + Lesson 8: Polishing machine
     + Lesson 9: Equipment to increase conveyor belt tension
     + Lesson 10: Equipment for lifting and lowering bridges onto ferries
II. List of devices
- 01 Time relay training module (OFF relay)
- 01 Time relay training module (ON relay)
- 01 training module for warning lights and sirens
- 01 Emergency stop button module
- 01 Push button installation training module (Input signal generator)
- 01 DC power module
- 04 Intermediate relay installation training modules (Set of 3 relays)
- 01 Pressure regulating valve
- 02 safety valves
- 01 Throttle valve
- 01 pilot safety valve
- 01 hydraulic motor
- 02 single suction 4/2 coil solenoid valves
- 01 one-way control valve
- 01 Magnetic proximity sensor
- 01 optical proximity sensor
- 01 capacitive proximity sensor
- 03 Pressure gauges
- 02 electric limit switches, left acting
- 02 electric limit switches, right acting
- 08 T-shaped connectors
- 01 Pressure switch
- 02 Double acting cylinders
- 01 0.4 bar 1-way valve
- 01 5 bar 1-way valve
- 01 hydraulic power unit
- 01 Power distribution training module
- 02 1-way expansion valves
- 02 4/3 solenoid valves, ABPT closed in the middle position
- 01 flow dividing valve
- 01 pressure tank
- 15 600 mm long hydraulic hoses
- 08 hydraulic hoses 1000 mm long
- 01 Excess pressure release tool
- 01 Load 9Kg
- 01 hydraulic distributor (P1, P2, T)
- 01 hydraulic oil distributor
- 01 Counter
- 01 4/3 solenoid valve, PT through the middle
- 01 specialized table for hydraulic practice with 2 working sides and 2 working sides
- 01 set of practice documents

- The equipment set is designed as separate modules with standard sizes and the same connection standards, helping to flexibly pair devices when practicing and easily upgrade products.
The hydraulic equipment jig base is machined from block aluminum, and surface anodized to ensure hardness, durability, and aesthetics.
- Modules in the practice set are manufactured according to ISO 9001:2015 Quality Management standards
- The module has built-in plastic brackets:
- The jig leg set uses a gear mechanism linking the lever and the plastic leg.
- Rectangular plastic jig legs, locking action by rotating the locking lever at a 90-degree angle to easily insert into the aluminum groove and lock.
