Product Code: ST.HP.T0201
Price: Contact
I. Training content
- Physical principles of hydraulics.
- Characteristics of hydraulic pressure and flow
- Reduce pressure on hydraulic pipes
- Learn the functions and uses of hydraulic valves and other components.
- Basic hydraulic system control
- Understand and redraw existing hydraulic circuit diagrams
- Practice with flow control valves
- Practice controlling hydraulic motors
- Practice controlling hydraulic cylinders
- Practice designing applied hydraulic circuits
- Assembling and operating control circuits:
+ Lesson 1: Pipe winding roller control system for tank trucks
+ Lesson 2: Rough grinding machine table control device
+ Lesson 3: Lifting equipment with two cylinders
+ Lesson 4: Fast-running equipment for drilling machines
+ Lesson 5: Control system for deburring press machine
+ Lesson 6: Gearbox casing clamping device
+ Lesson 7: Plastic injection molding machine
+ Lesson 8: Steel pipe bending machine
+ Lesson 9: Single cylinder press
+ Lesson 10: Machining center
+ Lesson 11: Magnetic crane
+ Lesson 12: Edge bending machine
+ Lesson 13: Earth drilling machine
II. List of devices
- 04 Pressure gauges
- 02 Throttle valves
- 01 1-way expansion valve
- 01 one-way valve, opening pressure 0.4 bar
- 04 one-way valves, opening pressure 5 bar
- 01 auxiliary control 1-way valve
- 08 T-shaped connectors
- 03 safety valves
- 01 membrane-type accumulator
- 01 Pressure regulating valve
- 01 Loading set, 9 kg
- 01 4/2 hand-operated valve
- 01 4/3 hand-operated valve, located in the middle of the circulation
- 02 Double-acting cylinders
- 01 flow dividing valve (flow dividing valve)
- 01 4/3 hand-operated valve, locked middle position
- 01 4/3 hand-operated valve, middle exhaust position
- 01 Stopwatch
- 01 Flow sensor
- 01 speedometer training module
- 16 Flexible pipes, 600 mm
- 01 hydraulic power unit
- 01 hydraulic motor
- 01 hydraulic distributor (P1, P2, T)
- 01 hydraulic oil distributor
- 04 flexible pipes, 1000 mm
- 01 Excess pressure release tool
- 01 hydraulic limit switch
- 01 set of practice documents

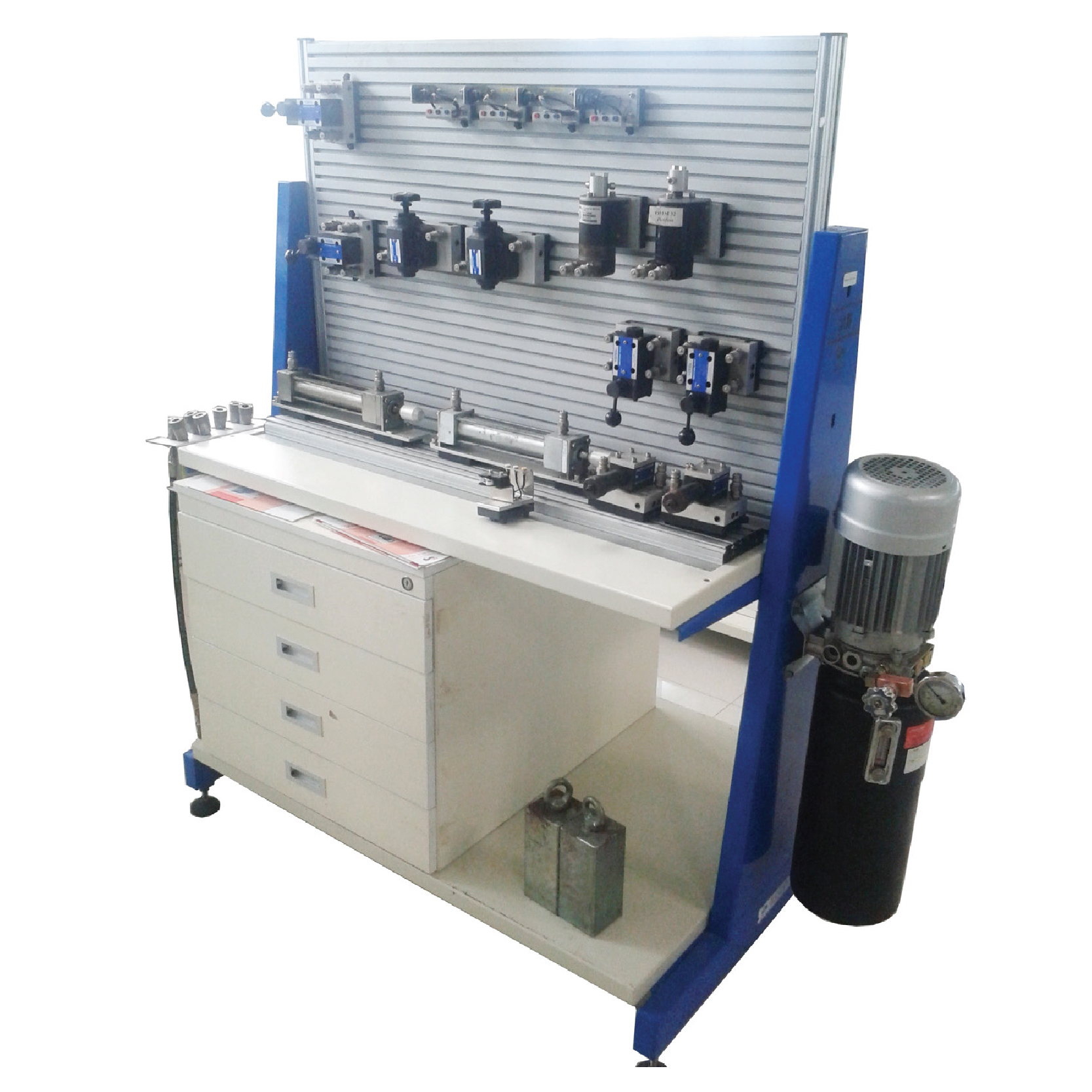

- 01 specialized table for practicing hydraulics with 2 working sides
- The equipment set is designed as separate modules with standard sizes and the same connection standards, helping to flexibly pair devices when practicing and easily upgrade products.
The hydraulic equipment mounting base is machined from block aluminum, and surface anodized to ensure hardness, durability, and aesthetics.
- Modules in the practice set are manufactured according to ISO 9001:2015 Quality Management standards
- The module has built-in plastic brackets:
- The mounting leg set uses a gear mechanism linking the lever and the plastic leg.
- Rectangular plastic legs, locking action by rotating the locking lever at a 90-degree angle to easily insert into the aluminum groove and lock.
