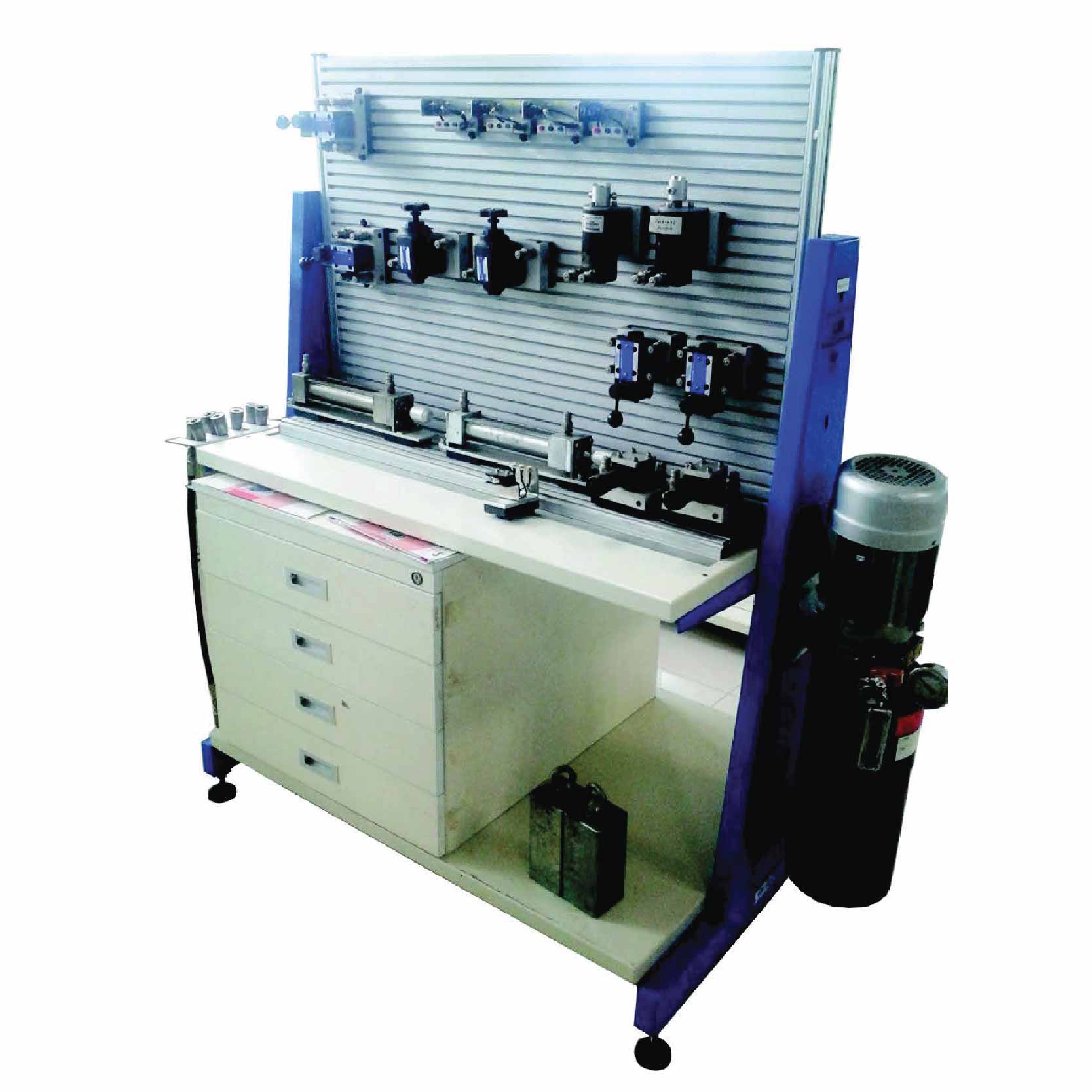

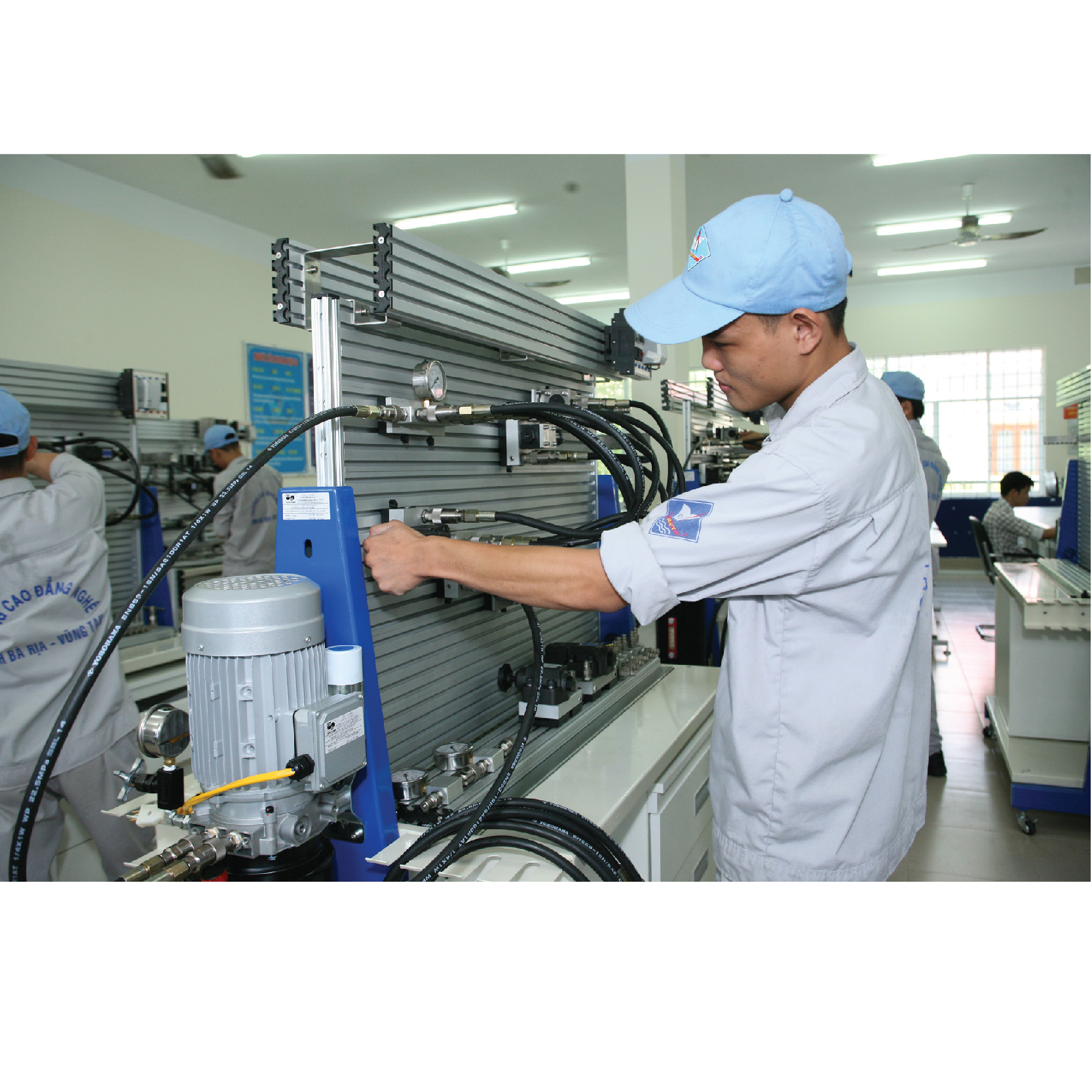

BASIC HYDRAULICS PRACTICE KIT

Product Code: ST.HP.T0101

Price: Contact

  • Device information
  • Specifications

I. Training content
- Physical principles of hydraulics.
- Characteristics of hydraulic pressure and flow
- Reduce pressure on hydraulic pipes
- Learn the functions and uses of hydraulic valves and other components.
- Basic hydraulic system control
- Understand and redraw existing hydraulic circuit diagrams
- Practice with flow control valves
- Practice controlling hydraulic motors
- Practice controlling hydraulic cylinders
- Practice designing applied hydraulic circuits
- Assembling and operating control circuits:
   + Lesson 1: Automatic lathe
   + Lesson 2: Package lifting equipment
   + Lesson 3: Detailed punching machine
   + Lesson 4: Equipment for loading blanks for rolling machines
   + Lesson 5: Equipment for lifting the heat treatment furnace lid
   + Lesson 6: Controlling the kiln door
   + Lesson 7: Equipment to increase conveyor belt tension
   + Lesson 8: Equipment for opening and closing frozen warehouse doors
   + Lesson 9: Machining station with turntable
   + Lesson 10: Paint booth
   + Lesson 11: Embossing machine
   + Lesson 12: Surface grinder
   + Lesson 13: Drilling machine
   + Lesson 14: Combustion chamber door opening and closing device
   + Lesson 15: Equipment for lifting and lowering ferry bridges
   + Lesson 16: Operating containers
   + Lesson 17: Pressing machine
   + Lesson 18: Assembly equipment
   + Lesson 19: Calculation for assembled equipment
II. Skills acquired
- Basic skills in operating principles, calculation methods for transmission systems and hydraulic control systems, knowing how to build system control circuits
- Thinking skills, design purpose, design thinking, analysis
- Skills to find causes of damage and solve problems in hydraulic circuits
III. List of devices
- 05 Pressure gauges
- 02 Throttle valves
- 01 one-way expansion valve
- 01 Lock valve (shutoff)
- 01 one-way valve, opening pressure 0.4 bar
- 01 one-way valve, opening pressure 5 bar
- 05 T-shaped connectors
- 02 safety valves
- 01 safety valve, auxiliary
- 01 Pressure adjustment
- 01 one-way valve, hydraulic auxiliary
- 01 Double acting cylinder
- 01 hydraulic motor
- 01 hydraulic distributor (P1, P2, T)
- 01 hydraulic oil distributor
- 01 membrane-type accumulator
- 01 Loading set, 9 kg
- 01 4/2 hand-operated valve
- 01 4/3 hand-operated valve, located in the middle of the circulation
- 01 Stopwatch
- 01 Flow sensor
- 01 speedometer training module
- 13 Flexible pipes, 600 mm
- 01 hydraulic power unit
- 04 flexible pipes, 1000 mm
- 01 Excess pressure release tool
- 01 set of practice documents
- 01 specialized table for practicing hydraulics with 2 working sides

- The equipment set is designed as separate modules with standard sizes and the same connection standards, helping to flexibly pair devices when practicing and easily upgrade products.
The hydraulic equipment mounting base is machined from block aluminum, and surface anodized to ensure hardness, durability, and aesthetics.
- Modules in the practice set are manufactured according to ISO 9001:2015 Quality Management standards
- The module has built-in plastic brackets:
- The mounting leg set uses a gear mechanism linking the lever and the plastic leg.
- Rectangular plastic legs, locking action by rotating the locking lever at a 90-degree angle to easily insert into the aluminum groove and lock.
