Product Code: ST.HP.K0101
Price: Contact
I. Training content
- Learn the structure and operating principles of pneumatic elements in practice
- Usage of elements
- Understand and draw circuit diagrams for valves and cylinders according to the application
- How to operate a single cylinder, the direction of action of a single cylinder, how to adjust the airflow through the 3/2 valve
- Direction of action of single cylinder, how to operate 3/2 button valve, connection to adjust cylinder speed with flow adjustment valve. Pressure display gauge
- Direction of action of a double-acting cylinder, how to operate the 5/2 switching valve, adjusting cylinder speed with the throttle valve.
- Direction of action of a double-acting cylinder, how to operate double-acting pneumatic 5/2 valve,
- Direction of action of double-acting cylinder, using 3/2 valve in the form of limit switch to limit cylinder travel,
- Cylinder delay control
- Practice connecting compressed air circuits:
+ Bar feeding equipment
+ Product classification
+ Parcel parcel division
+ Station for classifying pieces of material vertically
+ Metal edge folding machine
+ Stamp machine
+ Feeding the measuring machine
+ Redirection station for working objects
+ Paint box vibrator
+ Supply and divide materials
+ Heat plastic welding machine
+ Stone screening machine
+ Camera case clamping mechanism
+ Feeding station for Laser cutting machines
+ Semi-automatic internal grinding machine
II. Skills acquired
- Skills in calculating pneumatic drive systems
- Skills in analyzing problems, choosing appropriate equipment and appropriate control methods
- Skills to find the cause of damage, grasp error phenomena and make decisions to solve problems
III. List of equipment
Air supply unit
- 01 Filter, pressure regulator with 3/2 distribution valve
- 01 Gas distributor
- 01 pressure regulator with pressure display
- 02 1MPa pressure gauges
Manual valve and mechanical valve
- 03 Valves are normally 3/2 closed with push buttons
- 01 normally closed/normally open 3/2 button valve
- 01 emergency stop valve 3/2 normally closed
- 02 Valve 3/2 is usually closed as a wheel limit switch
- 02 3/2 valve is usually closed as a wheel limit switch in one direction
- 01 Valve 3/2 is normally closed as a transfer switch
- 01 5/2 switching valve
Pneumatic impact valve
- 02 single 3/2 pneumatic action valves, normally closed
- 01 3/2 timing valve normally closed, switchable
- 02 single pneumatic acting valves 5/2
- 03 5/2 dual pneumatic action valves
Flow regulating device
- 01 OR valve
- 01 AND valve
- 02 one-way expansion valves (dual)
- 01 quick-release valve
- 01 sequential pressure control valve
Executive structure
- 01 single-acting cylinder
- 02 Double-acting cylinders
Accessories
- 01 compressed air hose
- 01 Set of 10 T-shaped connectors
- 01 Set of 10 4mm plugs
- 01 Pipe cutting tool
- 01 Pipe removal tool
- 01 set of practice documents
- The equipment set is designed as separate modules with standard sizes and the same connection standards, helping to flexibly pair devices when practicing and easily upgrade products.
- Pneumatic equipment from SMC - Japan (global origin)
- Equipment mounting base includes:
. Aluminum alloy, scratch-resistant surface treatment
. Self-locking plastic feet made of ABS plastic have a cylindrical head with a "+" shaped groove to create elasticity

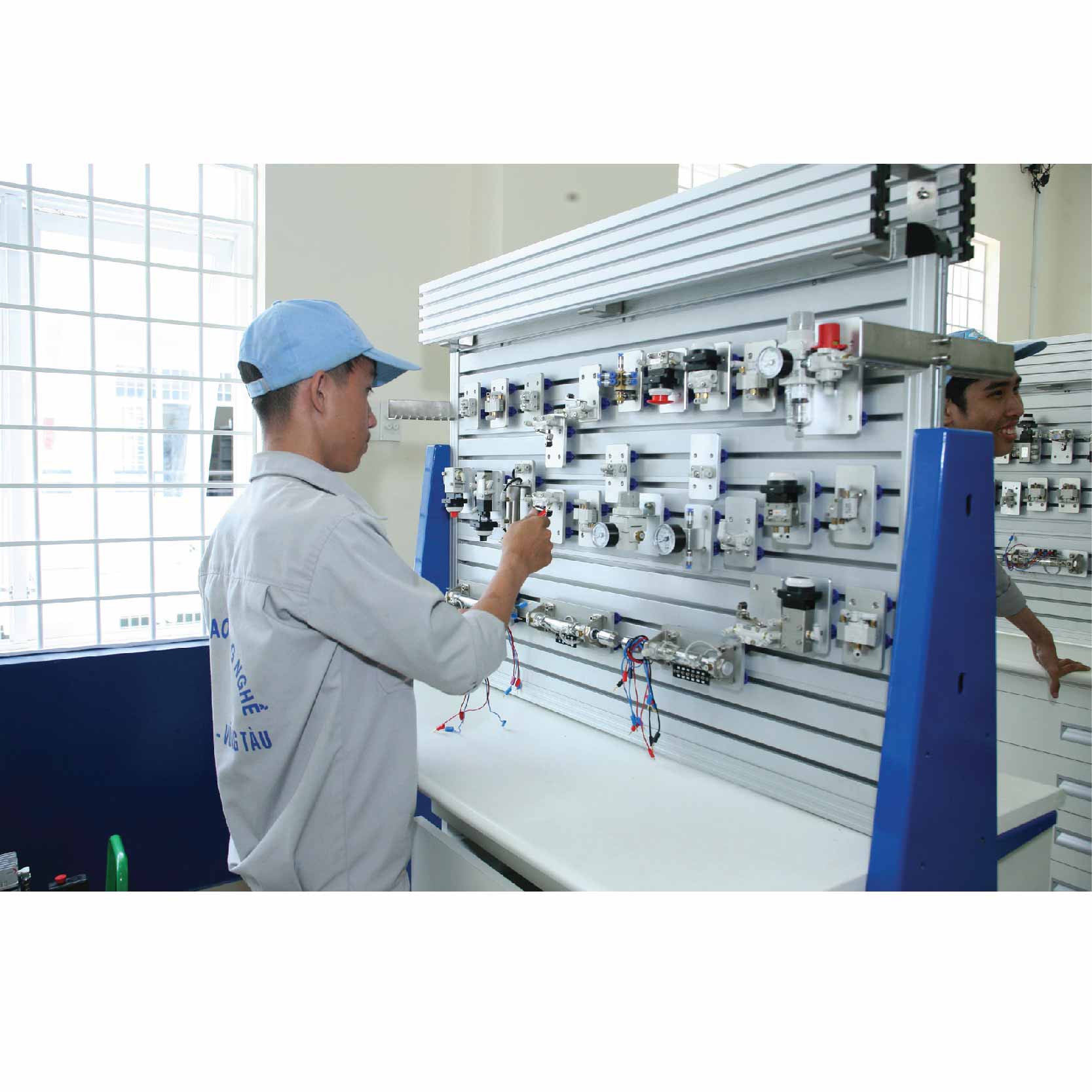

- Type of device mounting on the laboratory table:
. Using a self-locking plastic leg structure helps users to install and remove on aluminum table tops quickly and conveniently
. The cylindrical end of the plastic leg that is pressed into the aluminum grooves on the tabletop will shrink in cross-section to enter the groove on the tabletop. After entering the groove, the plastic leg will self-recover, creating a latch that holds the pneumatic element tightly onto the table.
