BASIC PNEUMATIC PRACTICE SET

Air Supply Unit

1. Filter-Regulator Unit with 3/2-Way Distribution Valve – TPAK.C2000

Technical Specifications

• The integrated device includes: 01 filter-regulator unit and 01 3/2-way shut-off valve
• The 3/2-way distribution valve is used to shut off and supply compressed air to all pneumatic components. Its function is similar to an “air supply power switch”.
• The 3/2-way distribution valve can be locked with a key to prevent students from opening it when there is no practical training session.
• Filtration rating: up to 5 micrometers
• Pressure adjustment range: 0.5 – 7 bar
• Quick connector size, inlet/outlet: Ø6 mm

Main Components

• 01 aluminum base
• 01 3/2-way shut-off valve
• 04 plastic feet
• 01 filter-regulator unit

2. Air Distribution Unit – TPAK.C6000

Technical Specifications

• Number of ports: 09 ports
• Port size: 4 mm quick connector
• Inlet: Ø6 mm
• The air supply ports are one-way valve type. When no pneumatic tube is inserted, the valve automatically closes to prevent air leakage.

Main Components

• 01 aluminum base
• 01 air manifold
• 04 plastic feet
• 09 self-locking quick connectors

3. Pressure Regulator with Pressure Gauge – TPAK.C4000

Technical Specifications

• Number of ports: 02 ports
• Thread size: 1/4″
• Quick tube connector size: Ø4 mm
• Pressure adjustment range: 0.05 to 0.7 MPa
• Withstand pressure: 1 MPa

Main Components

• 01 filter-regulator unit with pressure gauge
• 01 aluminum base
• 04 plastic feet

4. Pressure Gauge 1 MPa – TPAK.D0100

Technical Specifications

• Number of ports: 01 port
• Quick tube connector size: Ø4 mm
• Pressure display range: 0 to 1 MPa

Main Components

• 01 aluminum base
• 01 aluminum block
• 01 pressure gauge
• 04 plastic feet

Manual and Mechanical Valves

5. Normally Closed Push-Button Type 3/2-Way Valve – TPAK.G1000

Technical Specifications

• Number of ports: 03 ports
• Positions: 02
• Thread port size: M5
• Quick connector for Ø4 mm tube
• Working pressure range: -100 kPa to 1 MPa
• Spring return type
• Silencer at the exhaust port

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 push-button type 3/2-way valve

6. Normally Closed / Normally Open Push-Button Type 3/2-Way Valve – TPAK.G3000

Technical Specifications

• Number of ports: 03 ports
• Positions: 02
• Thread port size: 1/8″
• Quick connector for Ø4 mm tube
• Working pressure range: -100 kPa to 1 MPa
• Spring return type
• Silencer at the exhaust port

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 spacer block
• 01 3/2-way NO/NC valve

7. Normally Closed 3/2-Way Emergency Stop Valve – TPAK.G4000

Technical Specifications

• Number of ports: 03 ports
• Positions: 02
• Thread port size: 1/8″
• Red mushroom-head push button indicating emergency stop operation
• Normally closed valve type, NC
• Quick connector for Ø4 mm tube
• Working pressure range: -100 kPa to 1 MPa
• Spring return type
• Silencer at the exhaust port

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 normally closed 3/2-way emergency stop valve

8. Normally Closed Roller Lever Limit-Switch Type 3/2-Way Valve – TPAK.E2000

Technical Specifications

• Number of ports: 03 ports
• Positions: 02
• Port size: 1/8″
• Quick connector: Ø4 mm
• Normally closed valve type, NC, with metal roller lever
• Spring return
• Working pressure range: -100 kPa to 1 MPa

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 limit switch

9. Normally Closed One-Way Roller Lever Limit-Switch Type 3/2-Way Valve – TPAK.E0100

Technical Specifications

• Number of ports: 03 ports
• Positions: 02
• Port size: 1/8″
• Quick connector: Ø4 mm
• Normally closed valve type, NC, with metal roller lever actuated in one direction
• Spring return
• Working pressure range: -100 kPa to 1 MPa

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 limit switch

10. Normally Closed Selector-Switch Type 3/2-Way Valve – TPAK.G2000

Technical Specifications

• Number of ports: 03 ports
• Positions: 02
• Quick connector: Ø4 mm
• Direct actuation type
• Normally closed valve, NC
• Working pressure range: 0 to 1 MPa
• Spring return

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 selector-switch type 3/2-way valve

11. Selector-Switch Type 5/2-Way Valve – TPAK.I2000

Technical Specifications

• Number of ports: 05 ports
• Positions: 02
• Port size: 1/8″
• Direct actuation type
• Selector-switch type
• Working pressure range: 0.15 to 1 MPa

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 selector-switch type 5/2-way valve

Pneumatic-Actuated Valves

12. Single Pneumatic-Actuated 3/2-Way Valve, Normally Closed – TPAK.G5000

Technical Specifications

• Number of ports: 03 ports
• Positions: 02
• Quick connector: Ø4 mm
• Port size: M5
• Working pressure range: 0.15 to 0.7 MPa
• Normally closed valve type, NC
• Reset type: spring
• Spool valve type

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 single pneumatic-actuated 3/2-way NC valve

13. Normally Closed 3/2-Way Time-Delay Valve, Convertible Type – TPAK.P9100

Technical Specifications

• Adjustable time range: 0.5 to 60 s
• Working pressure range: 0.1 to 1.0 MPa
• Port size: 4 mm tube
• Normally closed valve type

Main Components

• 01 aluminum base
• 01 time-delay valve
• 04 plastic feet

14. Single Pneumatic-Actuated 5/2-Way Valve – TPAK.I4000

Technical Specifications

• Number of ports: 05 ports + 01 pilot air port
• Positions: 02
• Working pressure range: 0.15 to 0.7 MPa
• Spool valve structure
• Reset type: spring
• Logic type: memory valve
• Port size: 4 mm tube

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 single pneumatic-actuated 5/2-way valve

15. Double Pneumatic-Actuated 5/2-Way Valve – TPAK.I3000

Technical Specifications

• Number of ports: 05 ports + 02 pilot air ports
• Positions: 02
• Working pressure range: -100 kPa to 0.7 MPa
• Spool valve structure
• Reset type: spring
• Logic type: memory valve
• Port size: 4 mm tube

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 double pneumatic-actuated 5/2-way valve

Flow Control Devices

16. OR Valve – TPAK.P4000

Technical Specifications

• Number of ports: 03 ports/valve
• Positions: 02
• Port size: 4 mm tube
• Working pressure range: 0.05 to 1.0 MPa

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 OR valve

17. AND Valve – TPAK.P2000

Technical Specifications

• Number of ports: 03 ports/valve
• Positions: 02
• Port size: 4 mm tube
• Working pressure range: 0.05 to 1.0 MPa

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 AND valve

18. One-Way Flow Control Valve, Double Type – TPAK.P7000

Technical Specifications

• Port size: 4 mm tube
• Working pressure range: 0.1 to 0.7 MPa, 1 to 7 bar

Main Components

• 01 aluminum base
• 04 plastic feet
• 02 one-way flow control valves

19. Quick Exhaust Valve – TPAK.P5000

Technical Specifications

• Port size: 4 mm tube
• Working pressure range: 0.1 to 1.0 MPa, 1 to 10 bar

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 quick exhaust valve

Actuators

20. Single-Acting Cylinder – TPAK.N0100

Technical Specifications

• Number of ports: 01 port
• Bore diameter: 20 mm
• Stroke: 50 mm
• Working pressure range: 0.05 to 1 MPa
• Cylinder speed: 50 – 750 mm/s
• Spring return

Main Components

• 01 aluminum base
• 04 plastic feet
• 01 D25 cam
• 02 cylinder mounting flanges
• 01 single-acting cylinder

21. Double-Acting Cylinder – TPAK.N2000

Technical Specifications

• Number of ports: 02 ports
• Bore diameter: 20 mm
• Stroke: 100 mm
• Working pressure range: 0.05 to 1 MPa
• Cylinder speed: 50 – 750 mm/s

Main Components

• 01 aluminum base
• 04 plastic feet
• 02 cylinder mounting flanges
• 01 D25 cam
• 01 double-acting cylinder

Accessories

22. Pneumatic Tube – TU0425BU-20

• Material: flexible polyurethane, with good bending and abrasion resistance
• Diameter: 4 mm
• Roll length: 20 m

23. Set of 10 T-Connectors – KQ2T04-00A

• Quantity: 10 pieces/set
• Connector size: 4 mm

24. Set of 10 End Caps, 4 mm – KQ2P-04

• Quantity: 10 pieces/set
• Diameter: 4 mm

25. Tube Cutter – TK-3

• Capable of cutting 3 tube sizes: Ø4 mm, Ø6 mm, and Ø8 mm
• Quantity: 1 piece/set

26. Tube Removal Tool – TG-1

• Capable of removing 2 tube sizes: Ø4 mm and Ø6 mm
• Quantity: 1 piece/set

27. Practical Training Manual Set

Includes:

• 01 equipment operation and maintenance manual
• 01 practical training textbook with detailed instructions and research content for practical exercises.

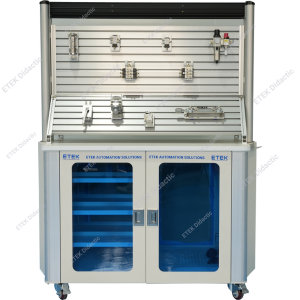

28. Dedicated Training Table for Pneumatic and Electro-Pneumatic Training – TPAB.M2110

Technical Specifications

• Overall dimensions: 1280 x 766 x 1600 mm, L x W x H
• The table consists of 2 main sections: mobile practice table and pneumatic mounting panel
• Mobile practice table

• Overall dimensions: 1280 x 766 x 860 mm, L x W x H
• Material: CT3 powder-coated steel combined with aluminum profiles
  + 4 corners made of molded aluminum profiles, dimensions 710 x 92 x 92 mm, R42 mm rounded corners, and 11 holes with a diameter of 6.8 mm
• Divided into 2 compartments: compartment 1 includes 04 equipment storage drawers; compartment 2 is a large compartment for storing larger devices
  + 04 CT3 powder-coated steel doors, dimensions 728 x 463 x 40 mm, with transparent mica panels, dimensions 638 x 372 x 3 mm, for observing the equipment inside
• Cabinet side panels made of CT3 powder-coated steel, dimensions 755 x 547 x 120 mm, with 160-degree folded edges and 06 slotted mounting holes
• Table legs equipped with casters and locking brakes.
• LED lighting inside the cabinet for convenient item searching
• Tabletop:
  . Dimensions: 1136 x 766 x 25 mm, L x W x H
  . Material: engineered wood with scratch-resistant and insulating coating.
• Test lead holder
  . Includes 02 cable hanging racks.
  . Material: stainless steel, 2 mm thick, with scratch-resistant surface.
  . Capacity: up to 40 leads
• Pneumatic mounting panel support frame
  . Support frame made of aluminum combined with CT3 powder-coated steel
  . 02 aluminum bars with R25 mm rounded profile, length 1500 mm
  . 01 CT3 steel bar, dimensions 1499 x 46.5 x 100 mm

• Pneumatic mounting panel

• Vertical mounting rack for pneumatic devices:
  . Dimensions: 1133 x 30 x 406 mm, L x W x H.
  . Mounting rack material: assembled from 03 aluminum profile bars, dimensions 1073 x 137 x 24.5 mm, anodized for scratch resistance and aesthetics, with specialized assembly structure.
  . Both sides of the aluminum bar include 3 slots, each 8.2 mm wide and 21.7 mm deep, spaced 44.4 mm apart
  . Practical training devices can be mounted from both sides.
• Inclined mounting rack for pneumatic devices:
  . 02 symmetrical racks
  . Inclination angle: 60 degrees relative to the tabletop
  . Dimensions: 1133 x 30 x 297 mm, L x W x H.
  . Mounting rack material: assembled from 02 aluminum profile bars, dimensions 1073 x 137 x 24.5 mm, anodized for scratch resistance and aesthetics, with specialized assembly structure.
  . Both sides of the aluminum bar include 3 slots, each 8.2 mm wide and 21.7 mm deep, spaced 44.4 mm apart
• Mounting rack for electrical devices:
  . Dimensions: 1144 x 92 x 80.5 mm
  . Mounting rack material: 2 mm thick anodized aluminum profile, ensuring scratch resistance and aesthetics, with specialized assembly structure.
  . Aluminum plate dimensions: 86 x 13.4 x 1136 mm, with module mounting positions spaced at 18 mm, 12 mm, 24.5 mm, and 26.5 mm
  . Includes 2 aluminum bars, allowing practical training devices to be mounted from both sides.

Main Components

• 01 tabletop
• 01 mobile practice table
• 01 vertical mounting rack for pneumatic devices:
• 02 inclined mounting racks for pneumatic devices:
• 01 mounting rack for electrical devices:
• 02 test lead holders

29. Air Compressor with Storage Tank – TPAK.C0101

• Dedicated laboratory air compressor with very low noise level

Technical Specifications

• Dimensions: 600 x 300 x 600 mm, L x W x H
• Dedicated laboratory air compressor with very low noise level
• Operating voltage: 220 VAC, 50 Hz
• Power: 550 W
• Tank capacity: 30 L

Main Components

• 01 silent air compressor
• 01 quick connector
• 01 air hose

30. ETEK-Lab Digitalization and Practice Support Software

a. General Features

• Vietnamese-language interface, user-friendly and easy to use.
• Web-based operation, accessible through an Internet browser.
• Allows access anytime and anywhere using a personal account.
• Supports login with individual usernames and passwords for each user.
• Supports role-based access control for different user groups, including teachers and students.
• Supports storage and use of lecture content, learning materials, and practical training documents.
• Course content, lectures, and practical exercises can be continuously updated by users.
• Supports effective use of theoretical materials and practical content associated with training equipment.
• Software data is deployed on the supplier’s Cloud Server.
• The software has a Copyright Registration Certificate issued by the Copyright Office.

b. Lecture Development Support Functions

• Import lecture content from Word files.
• Create and edit lectures directly on the software.
• Support insertion of visual illustrative images.
• Support multiple types of multiple-choice questions.
• Allow development of a question bank for testing and assessment.
• Manage lecture content.

c. Integration of AI Technology to Support Teaching

• The software integrates artificial intelligence, AI, technology to support teachers in developing training content, preparing lectures, and designing tests.
• AI helps reduce lesson preparation time and supports fast, systematic, and effective development of training content.
• Supports the development of lecture structures based on topics or subject content.
• Automatically generates key lecture components, including learning objectives, knowledge content, illustrative examples, and discussion questions.
• Supports summarizing long documents into key teaching content.
• Supports converting technical documents into lecture content that is easier for students to understand.
• Supports editing and improving lectures, as well as adding illustrative examples or real-world scenarios.
• Generates illustrative images and visual diagrams suitable for lesson content.
• Automatically generates test questions from lecture content, including multiple-choice, true/false, matching, and fill-in-the-blank questions.

d. Simulation

• Simulation of actuator operation: screw motor
• Simulation of actuator operation: gear motor
• Simulation of actuator operation: turbine motor
• Simulation of actuator operation: vane motor
• Simulation of distribution device operation: air manifold
• Simulation of distribution device operation: air tank
• Simulation of valve operation: 3/2-way valve controlled by a sensing probe
• Simulation of valve operation: 3/2-way valve controlled by a foot pedal
• Simulation of valve operation: 3/2-way valve controlled by a limit switch
• Simulation of valve operation: 3/2-way valve controlled by pneumatic actuation, direct control and assisted-valve control
• Simulation of valve operation: 3/2-way valve controlled by electro-pneumatic actuation, direct control and assisted-valve control
• Simulation of valve operation: 4/2-way valve controlled by a switch
• Simulation of valve operation: 4/2-way valve controlled by a sensing probe
• Simulation of valve operation: 4/2-way valve controlled by single-sided pneumatic actuation
• Simulation of valve operation: 4/2-way valve controlled by single-sided electro-pneumatic actuation
• Simulation of valve operation: 5/2-way valve controlled by single-sided pneumatic actuation
• Simulation of valve operation: 5/2-way valve controlled by single-sided electro-pneumatic actuation
• Simulation of valve operation: 5/3-way valve controlled by double-sided pneumatic actuation
• Simulation of valve operation: 5/3-way valve controlled by double-sided electro-pneumatic actuation
• Simulation of valve operation: OR logic valve
• Simulation of valve operation: AND logic valve
• Simulation of valve operation: one-way valve, non-adjustable and adjustable types
• Simulation of valve operation: quick exhaust valve
• Simulation of valve operation: vacuum valve
• Simulation of valve operation: slow-closing time control valve
• Simulation of valve operation: slow-opening time control valve
• Simulation of pneumatic control circuit operation: manual control, direct and indirect
• Simulation of pneumatic control circuit operation: time-based control, semi-automatic and automatic
• Simulation of pneumatic control circuit operation: stroke-based control, automatic
• Simulation of pneumatic control circuit operation: sequence-based control, automatic
• Simulation of electro-pneumatic control circuit operation: manual control, direct and indirect
• Simulation of electro-pneumatic control circuit operation: time-based control, semi-automatic and automatic
• Simulation of electro-pneumatic control circuit operation: stroke-based control, automatic
• Simulation of electro-pneumatic control circuit operation: cascade control, automatic
• Simulation of electro-pneumatic control circuit operation: sequence-based control, automatic
• Simulation of electro-pneumatic machine control circuit operation: circuit assembly and operation of a workpiece feeding station, non-automatic and automatic
• Simulation of electro-pneumatic machine control circuit operation: circuit assembly and operation of a drilling station, non-automatic and automatic
