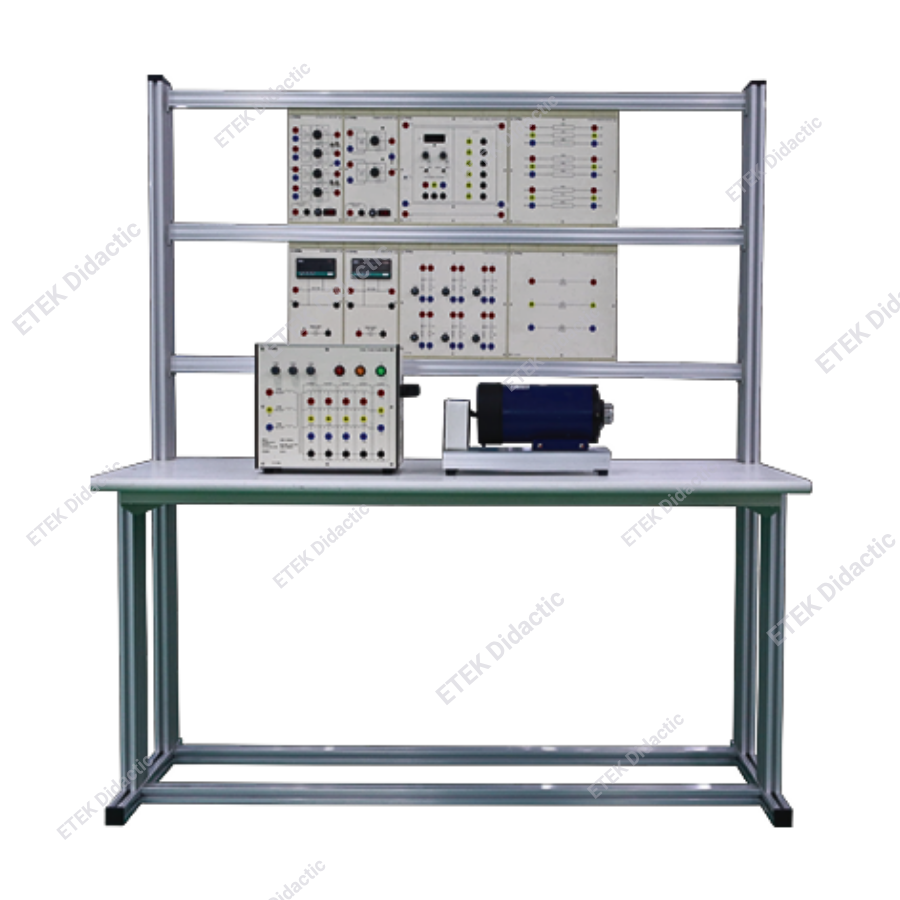

UNCONTROLLED RECTIFIER TRAINING KIT
Product Code: ST.PE.E0201
Price: Contact
The uncontrolled power rectifier training system is an educational tool in the field of power electronics that enables learners to understand and practice rectifier circuits, especially rectifiers using semiconductor devices such as diodes, without requiring external control signals.
- Device information
- Specifications
General Specifications
- Designed and manufactured in compliance with the following management systems and standards:
- ISO 9001:2015 – Quality Management System
- ISO 14001:2015 – Environmental Management System
- ISO 45001:2018 – Occupational Health and Safety Management System
- ISO/IEC 27001:2022 – Information Security Management System
- ISO 50001:2018 – Energy Management System
- The equipment set is designed in standard A4 modular format with standardized dimensions and connection interfaces, enabling flexible interconnection during practical training and convenient future upgrades.
- Module surface: coated with specialized melamine for laboratory equipment to ensure high mechanical strength and electrical insulation.
- Panel graphics: film-printed on the module surface to ensure durability and aesthetic appearance.
- Module enclosure material: PVC plastic.
- The front panel is integrated with 4 mm safety sockets.
Training Contents
- Single-phase half-wave power rectifier
- Full-wave power rectifier
- Single-phase bridge rectifier
- Three-phase star rectifier
- Three-phase bridge rectifier
Module List
- 01 Three-phase circuit breaker training module
- 01 Diode training module
- 01 AC power supply module
- 01 Transformer training module
- 01 Differential amplifier module
- 01 Current/voltage conversion module
- 01 Fuse training module
- 01 DC voltmeter training module
- 01 DC ammeter training module
- 01 Three-phase resistive load training module
- 01 Inductive load training module
- 01 DC motor training module
- 01 Accessories set
- 01 User manual set
1. Three-Phase Circuit Breaker Training Module – TPAC.B4500
Technical Specifications
- Enclosure dimensions: 300 x 139 x 131 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards for power/current ratings, leakage current, and dielectric strength
- Three-phase circuit breaker
- Number of protected poles: 3 poles
- Rated current: 25A
- Rated voltage: 400VAC, 50/60Hz
Main Components
- 01 Plastic enclosure
- 01 Module panel
- 01 Three-phase circuit breaker
- 01 Set of M4 connectors
2. Diode Training Module – TPAP.C5000
Technical Specifications
- Enclosure dimensions: 300 x 272 x 131 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Number of diodes: 06
- Rated voltage: 600V
- Rated current: 30A
- Integrated LC surge protection circuit
- Configurable into single-phase and three-phase uncontrolled star and bridge rectifier circuits
- Can be combined with thyristors to form semi-controlled rectifier circuits
Main Components
- 01 Bakelite panel
- 01 Plastic enclosure
- 01 Set of M4 connectors
- 01 Power diode set
- 01 AC capacitor set
- 01 Power resistor set
- 02 Aluminum heat sinks
3. AC Power Supply Module – TPAC.A2300
Technical Specifications
- Enclosure dimensions: 300 x 272 x 131 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Input supply: 3-phase, 380VAC/50Hz, star connection
- Output supply: 3-phase
+ 220VAC/50Hz, star connection
+ 380VAC/50Hz, star connection
- Transformer capacity: 3 kVA
- Integrated phase indicator lamps
- Primary overcurrent protection by fuses
Main Components
- 01 Set of M4 connectors
- 01 Enclosure
- 01 Module panel
- 01 Transformer
- 03 Fuses
- 03 Phase indicator lamps
4. Transformer Training Module – TPAE.L4500
Technical Specifications
- Enclosure dimensions: 350 x 210 x 300 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Input supply: 3-phase, 380VAC/50–60Hz, star connection
- Output supply: 3-phase
- Output voltage taps per phase:
0~64VAC~95VAC~110VAC~127VAC~220VAC / 50–60Hz
- Transformer capacity: 6 kVA
- Integrated phase indicator lamps
- Primary overcurrent protection by fuses
Main Components
- 01 Set of M4 connectors
- 01 Enclosure
- 01 Module panel
- 01 Transformer
- 03 Fuses
- 03 Phase indicator lamps
5. Differential Amplifier Module – TPAP.G1000
Technical Specifications
- Enclosure dimensions: 300 x 139 x 131 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Power supply: 220V/50Hz
- Number of input/output channels: 04
- Input voltage ranges:
+ 0 ~ 10V
+ 0 ~ 100V
+ 0 ~ 500V
- Input range selection by switch
- Output voltage range: 0 ~ 10V
- Maximum conversion frequency: 100kHz
- Two output connection standards:
- M4 connector
- BNC connector for oscilloscope connection
Main Components
- 01 Bakelite panel
- 01 Plastic module enclosure
- 01 Set of M4 connectors
- 01 BNC connector
- 01 Power supply circuit
- 01 Amplifier circuit
- 02 Logic switches
- 01 Fuse
- 01 Illuminated power switch
- 01 Transformer
6. Current/Voltage Conversion Module – TPAP.G2000
Technical Specifications
- Enclosure dimensions: 300 x 139 x 131 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Power supply: 220V/50Hz
- Number of input/output channels: 02
- Input current ranges:
+ 0 ~ 1A
+ 0 ~ 5A
+ 0 ~ 20A
- Input range selection by switch
- Output voltage range: 0 ~ 10V
- Maximum conversion frequency: 100kHz
- Input overcurrent indication
Main Components
- 01 Bakelite panel
- 01 Plastic enclosure
- 01 Set of M4 connectors
- 01 Power supply circuit
- 01 Conversion circuit
- 01 Transformer
- 01 Fuse
- 01 Illuminated power switch
7. Fuse Training Module – TPAC.I0100
Technical Specifications
- Enclosure dimensions: 300 x 139 x 131 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Number of branches: 04
- Rated current: 5A
Main Components
- 01 Bakelite panel
- 01 Plastic enclosure
- 04 Fuses
8. DC Voltmeter Training Module – TPAI.B4000
Technical Specifications
- Enclosure dimensions: 300 x 139 x 131 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Voltage measurement range: 0 ~ 500VDC
- Display type: Analog pointer
- Display angle: 90°
Main Components
- 01 Bakelite panel
- 01 Plastic enclosure
- 01 Set of M4 connectors
- 01 Analog DC voltmeter
9. DC Ammeter Training Module – TPAI.A4000
Technical Specifications
- Enclosure dimensions: 300 x 139 x 131 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Measurement range: 0 ~ 10A DC
- Display type: Analog pointer
- Display angle: 90°
- Equipped with overcurrent and short-circuit protection
Main Components
- 01 Bakelite panel
- 01 Plastic enclosure
- 01 Set of M4 connectors
- 01 Fuse
- 01 Analog DC ammeter
10. Three-Phase Resistive Load Training Module – TPAN.E3000
Technical Specifications
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Number of branches: 03 load branches for 3 phases, divided into 6 levels
- Input voltage: 3-phase 380VAC/50Hz
- Resistance value: 100Ω
- Rated power: 1000W
- Integrated cooling fan
11. Inductive Load Training Module – TPAN.E3101
Technical Specifications
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards
- Number of branches: 03 load branches for 3 phases, divided into 6 levels
- Rated voltage Y/Δ: 380/220VAC, 50Hz
- Rated current: 0.5 ~ 2A
12. DC Motor Training Module – TPAE.G0100
Technical Specifications
- Dimensions: 391 x 180 x 206 mm (L x W x H)
- Standards:
- ISO 9001:2015 – Quality Management System
- Compliant with TCVN 5699-1:2010 and IEC 60335-1:2010 standards for power/current ratings, leakage current, and dielectric strength
- Motor type: Separately excited DC motor
- Armature voltage: 220VDC
- Field voltage: 220VDC
- Power rating: 0.75 kW
- Speed: 3000 rpm
- Motor shaft equipped with a coupling for connection to an encoder or load
Main Components
- 01 Bakelite panel
- 01 Plastic module enclosure
- 01 Set of M4 connectors
- 01 Aluminum base
- 01 Coupling
- 01 Separately excited DC motor
13. Accessories Set
Technical Features
- Safety connection wires, Ø4 mm
- Rated current capacity: 19A
- Sufficient number of connectors for all practical exercises
14. User Documentation
The documentation package includes:
- Equipment user manual
- Practical training manual
15. ETEK-Lab Digitalization, Simulation, and Training Support Software
a. General Features
- Vietnamese interface, user-friendly and easy to operate
- Web-based platform accessible through internet browsers
- Allows access anytime and anywhere using personal accounts
- Supports login with individual usernames and passwords
- User role management for teachers and students
- Supports storage and management of lectures, learning materials, and laboratory documents
- Course contents, lectures, and practical exercises can be continuously updated by users
- Efficient support for theoretical materials and practical content associated with training equipment
- Software data hosted on the supplier’s cloud server
- The software has a Copyright Registration Certificate issued by the Copyright Office
b. Lecture Development Support Functions
- Import lecture content from Word files
- Create lecture content directly on the software platform
- Support insertion of illustrative images
- Support multiple types of multiple-choice questions
- Allows creation of question banks for assessments and examinations
- Lecture content management
c. AI-Integrated Teaching Support Technology
- The software integrates Artificial Intelligence (AI) technology to support teachers in developing training content, preparing lectures, and designing examinations
- AI helps reduce lesson preparation time and supports fast, systematic, and effective development of training materials
- Supports creation of lecture structures based on topics or course content
- Automatically generates key lecture components such as learning objectives, knowledge content, illustrative examples, and discussion questions
- Supports summarization of lengthy documents into key teaching points
- Converts technical documents into learner-friendly educational content
- Assists in editing and improving lectures while adding practical examples and real-life scenarios
- Generates illustrative images and visual diagrams suitable for lesson content
- Automatically creates assessment questions from lecture materials, including multiple choice, true/false, matching, and fill-in-the-blank questions
d. Simulation Features
- Software for teaching and simulating fundamental principles in Power Electronics through animations and interactive simulations
- Includes detailed theoretical content covering both basic and advanced principles
- Theory and simulation of electronic and power electronic components and devices: insulation, semiconductors, diodes, transistors, and power electronic devices
- Simulation of triggering and switching methods:
- Thyristor turn-on/turn-off methods
- Gate triggering methods
- Simulation of gate trigger circuits:
- General trigger circuits
- Resistance trigger circuits
- Half-wave and full-wave resistance trigger circuits
- UJT oscillator
- Synchronized UJT triggering
- Ramp triggering methods
- Simulation of phase-controlled rectifiers
- Simulation of chopper circuits:
- DC-DC choppers
- Buck converters
- Boost converters
- AC choppers and applications
- Simulation of direct inverters:
- Triggering diagrams
- Single-phase direct inverters and applications
- Simulation of AC voltage controllers
