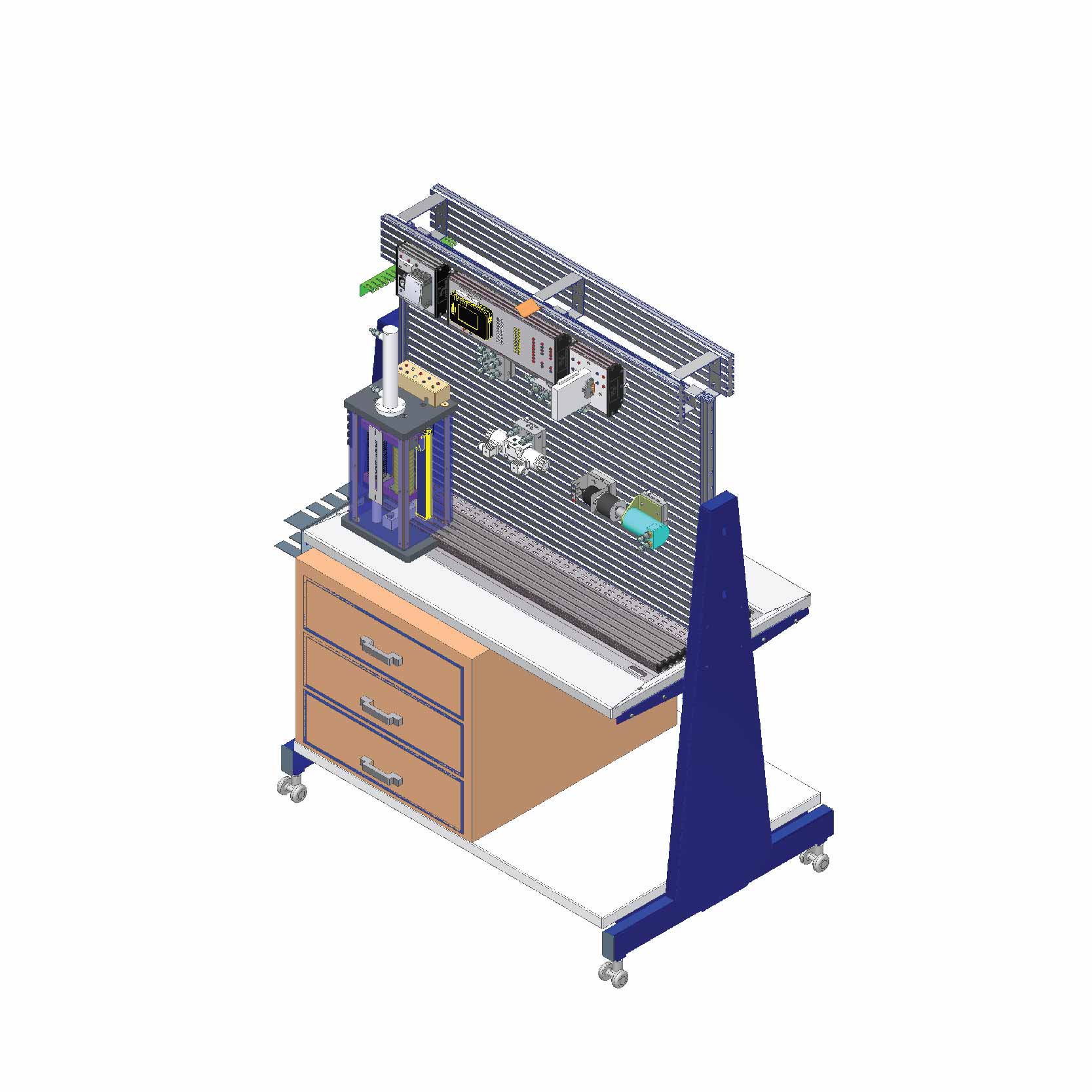

HYDRAULIC SERVO CONTROL CIRCUIT LAYOUT MODEL (LINEAR HYDRAULIC CONTROL)

I. Practical content
- Adjust and observe parameter values of the hydraulic Servo unit
- Build a PID model for hydraulic speed and position control
- Adjust PID parameters
- Controls and mechanical structures are electrically coupled
- Application of sensors and hydraulic components on automatic systems
- Dashboard applications
- Pairing/installation application
- Diagnose, detect and repair
II. List of equipment
- 01 Table frame
- 01 installation panel assembly
- 01 Control cluster
- 01 Hydraulic cylinder assembly
- 01 hydraulic servo valve assembly
- 01 hydraulic pump assembly
- 01 digital input and output simulation module
- 01 PLC training module
- 01 1-way power training module
