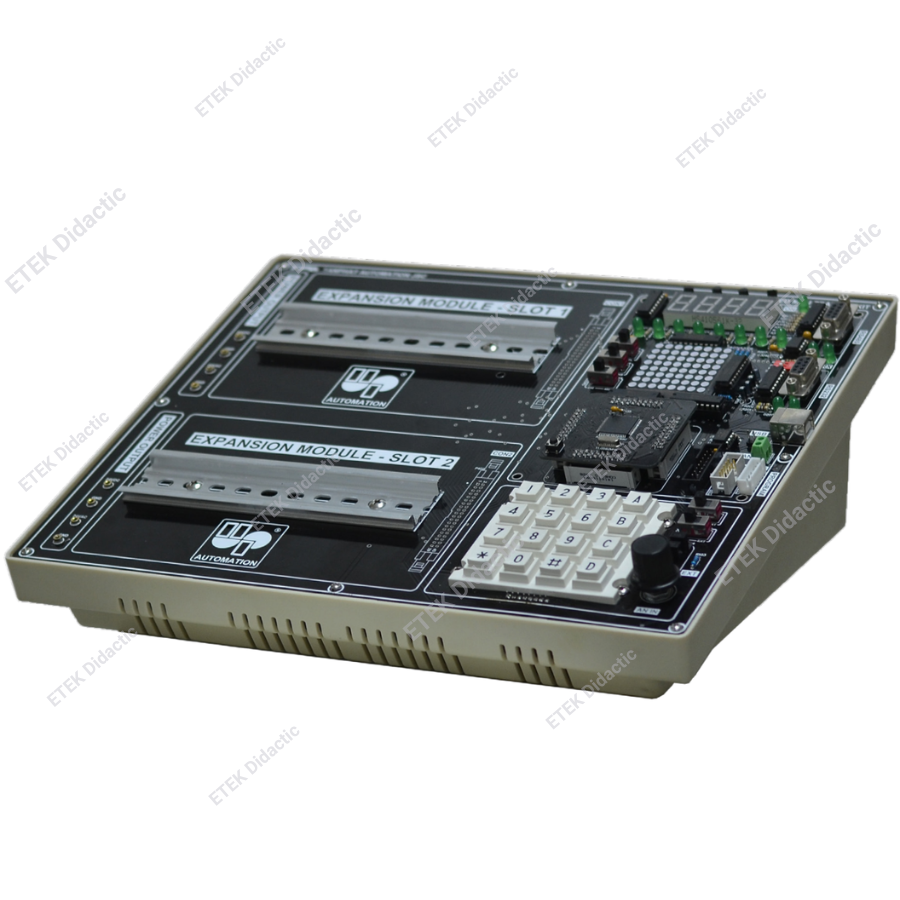

MULTI-FUNCTION PRACTICE SET CONTROL

MULTI-FUNCTION PRACTICE SET CONTROL

Product Code: ST.MP.A0050

Price: Contact

A Multi-Function Practice Set Control typically refers to a versatile control system designed to manage and operate multiple functions or components in an experimental or practical setup. It is often used in educational labs, engineering, or research settings where various systems or components need to be tested or controlled simultaneously.
  • Device information
  • Specifications

TRAINING CONTENT

• Practice learning the structure of 8051, AVR, and PIC
microcontrollers.
• Practice learning the instruction set and registers.
• Practice programming I/O communication.
• Practice programming Timer and Counter control.
• Practice programming with external interrupts.
• Practice programming ADC reading and processing.
• Practice programming PWM motor control pulses.
• Practice programming single LED display control.
• Practice programming 7-segment LED display control.
• Practice programming LED matrix display control.
• Practice programming matrix keypad reading.
• Practice programming RS232 standard computer
communication.
• Practice programming RS485 standard computer communication.



• CPU AT89S52
• Flash memory: 8 Kbytes.
• RAM memory: 256 x 8 bits
• Frequency: Up to 24 MHz
• Function: 03 Timer/Counter.
• Communication: UART.
• Number of I/O ports: 32 DIO
• Number of I/O ports: 53 DIO
