SEMICONDUCTOR COMPONENT EXPERIMENT SET

Product Code: ST.BE.A0006

Price: 12014288

  • Device information
  • Specifications

TRAINING CONTENT

• Identify semiconductor devices

• Semiconductor switching control

• Diode and DC characteristics

• Half-cycle rectification, full-cycle bridge using diodes

• Power filter, voltage doubler

• Waveform using Diode Zener

• Adjust Zener Diode voltage

• Check PNP Transistor function

• Emitter-Base bias voltage, upstream of Collector

• DC circuit voltage using Transistor

• Photo resistive isolation IC

• How to detect problems

HIGHLIGHTS FEATURES

• The practice set helps students improve their theoretical knowledge of semiconductor components diode, zener diode, PNP/NPN transistor, optocoupler, IC CD4066

• Applications for rectifier circuits, transistors, voltage doublers, diodes, etc.

• The circuit board has built-in components and intuitive, easy-to-understand circuit diagrams

SKILLS ACHIEVED

• Calculate and design basic electronic circuits

• Understand the uses and application scope of each circuit

• Know how to measure, detect errors and fix circuit errors

• Box size: 330 x 264 x 110 (WxDxH)

• Quality Management Standard ISO 9001:2015

• Designed into removable modules that can be assembled flexibly with the same connection standard

• Black aluminum box style, molded plastic lid

• The printing pattern guides the printing of the film on the module surface, ensuring aesthetics as well as the longevity of the device

SEMICONDUCTOR COMPONENTS EXPERIMENT MODULE 1 - TPAQ.B4100

• Box size: 173x169x25mm (LxWxH)

• Power supply: 12VAC, 0 ~ ±15VDC

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

• Rectifier bridge diode: 2A/1000V

• Output current: 0.2A • Adjustable rheostat: 0 ~ 10KΩ

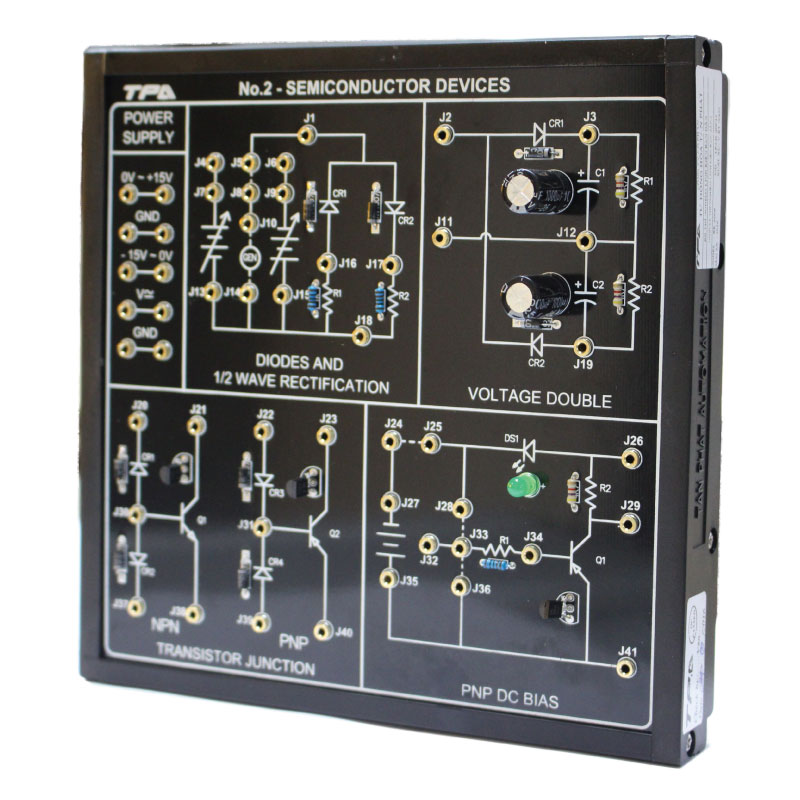

SEMICONDUCTOR COMPONENTS TESTING MODULE 2 - TPAQ.B4100

• Box size: 173x169x25mm (LxWxH)

• Power supply: 12VAC, 0 ~ ±15VDC

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

SEMICONDUCTOR COMPONENTS EXPERIMENT MODULE 3 - TPAQ.B4300

• Box size: 173x169x25mm (LxWxH)

• Power supply: 12VAC, 0 ~ ±15VDC

• Adjustable rheostat: 0 ~ 10KΩ • Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack

SEMICONDUCTOR COMPONENTS EXPERIMENT MODULE 4 - TPAQ.B4400

• Box size: 173x169x25mm (LxWxH)

• Power supply: 12VAC, 0 ~ ±15VDC

• Adjustable rheostat: 0 ~ 1KΩ

• Logic switch: 2 holding positions

• LED displays signal

• Optical resistor 5mm

• Black anodized aluminum case

• Practice circuits divided into clear blocks

• M2 signal jack
