Product Code: ST.HP.K3000
Price: Contact
* Purpose of use:
+ Used for practicing pneumatic and hydraulic diagrams.

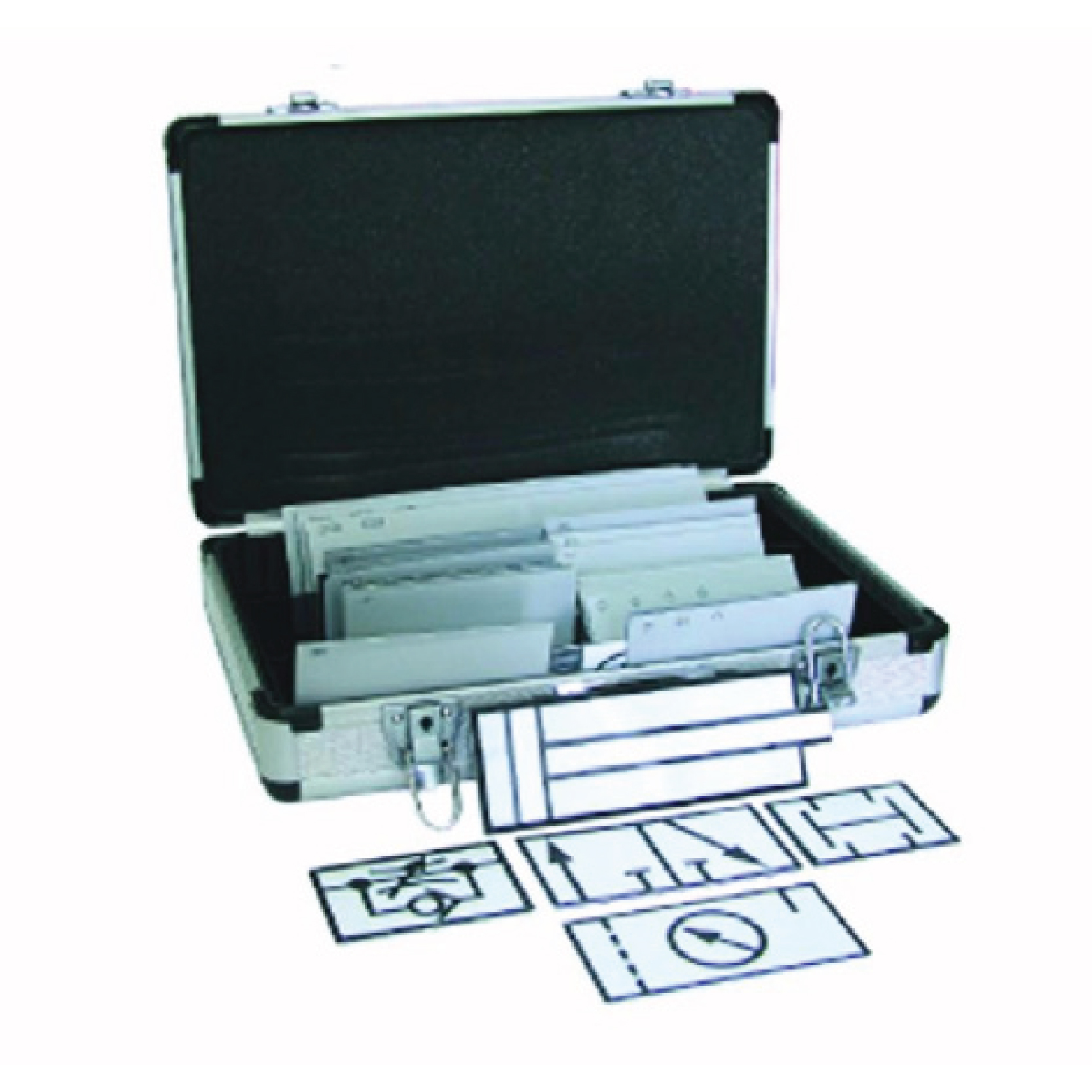

+ set of symbols for magnetic pneumatic and hydraulic elements mounted on iron boards for lectures or assembled into complete pneumatic and hydraulic diagrams.
* List of main materials:
- 01 magnetic suitcase.
- 29 Element symbol plates 70x70.
- 29 Element symbol plates 70x140.
- Dimensions: 490 x 280 x 110mm (LxWxH)
- Suitcases are made of wood.
The suitcase compartment and suitcase lid are made of 10mm thick wood, suitcase compartment is 80mm high.
- The partitions are made of wood 10mm thick and 60mm high.
- The suitcase is divided into 9 equal compartments with dimensions of 150mm x 80mm.
- The suitcase has a handle, 2 hinges, and 2 locks.
- Set of symbols for pneumatic and hydraulic elements includes elements such as single cylinder, double cylinder, valve, filter,...
- Magnetic Elements, used on iron boards.
