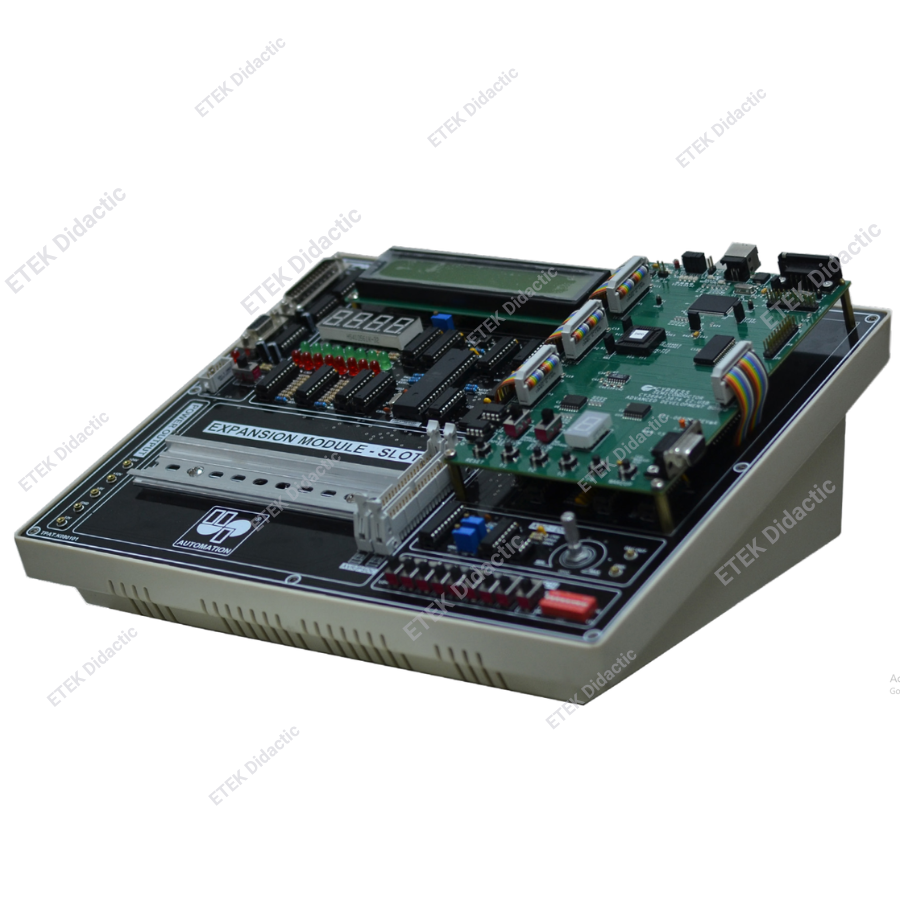

SET TO PRACTICE VARIOUS TYPES OF COMPUTER INTERFACES

SET TO PRACTICE VARIOUS TYPES OF COMPUTER INTERFACES

Product Code: ST.MP.A0060

Price: Contact

The computer interface practice kit plays a crucial role in helping students, learners, and trainees understand and practice with different types of user interfaces. It not only helps develop technical skills but also enhances the ability to interact effectively with computer systems and electronic devices.

  • Device information
  • Specifications

TRAINING CONTENT

• Practical computer communication using RS232 standard protocol
• Practical computer communication using USB 2.0 standard
• Practical computer communication using Ethernet standard
• Practical computer communication using LPT standard
• Practical interfacing with IC 82C55A
• Practical programming of single LED control
• Practical programming of 7-segment LED display control



• PsoC MCU block CY7C68013A:
• Internal oscillator: 48MHz, 24MHz, 12 MHz
• Low power consumption mode, current consumption: ≤
85mA
• External SRAM memory: 64K bytes
• RAM memory: 256 bytes
• EEPROM memory: 512 bytes
• Technical standard: USB 2.0 high speed, compatiblea
